How to Reduce Noise from Soil Pipes and Waste Pipes

Noisy pipework is a common problem in houses, flats, hotels and converted buildings. A toilet flushing upstairs, water passing through a soil stack or waste travelling around a bend can produce surprisingly intrusive noise in bedrooms, living rooms and other quiet spaces.

The sound may be heard as rushing water, gurgling, knocking, vibration or a hollow drumming noise from inside a boxed-in service duct.

In many cases, the most effective place to begin treating the problem is at the pipe itself. Acoustic pipe lagging adds mass and isolation around the service, helping reduce the sound that radiates from its surface.

Why Are Waste Pipes and Soil Stacks Noisy?

Pipe noise is rarely caused by one issue alone. Several types of sound and vibration can be created within the same drainage system.

1. Water Impact at Bends and Junctions

Water and waste moving down a vertical stack can strike bends, branches and changes in direction. The impact causes the pipe wall to vibrate, and that vibration can then be heard in the surrounding room.

Base bends and horizontal offsets can be particularly noticeable because they interrupt the direction of flow.

2. Flow Noise

Water moving through a pipe produces rushing, splashing and turbulent flow noise. This can be more noticeable where the pipe diameter changes or where several appliances discharge into the same system.

3. Air Movement and Gurgling

Drainage systems move air as well as water. Pressure changes may create whooshing, sucking or gurgling sounds near traps, vents and air-admittance valves.

4. Pipe-Wall Vibration

The pipe itself can vibrate as water travels through it. Lightweight pipe walls can then radiate this vibration as airborne noise, much like the surface of a drum.

5. Structure-Borne Transmission

Where a pipe is held tightly against a wall, joist, floor or rigid bracket, vibration can pass from the service into the building structure.

The sound may then travel beyond the immediate pipe location and be heard through adjoining walls, floors or ceilings.

6. Resonance Inside Pipe Boxing

A hollow service enclosure can act as a resonant chamber. Sound radiating from the pipe reflects between the internal surfaces of the boxing, making the problem appear louder.

Closing a noisy pipe behind lightweight board without treating the source can therefore hide the pipe visually without adequately controlling the sound.

What Is Acoustic Pipe Lagging?

Acoustic pipe lagging is a flexible, high-mass material designed to wrap around pipes, ducts and mechanical services.

Its purpose is different from ordinary thermal pipe insulation. Thermal insulation is primarily intended to control heat loss, heat gain or condensation. Acoustic lagging is designed to reduce vibration and airborne sound radiating from the service.

A purpose-designed acoustic wrap commonly combines more than one material so that it can address different aspects of the noise problem.

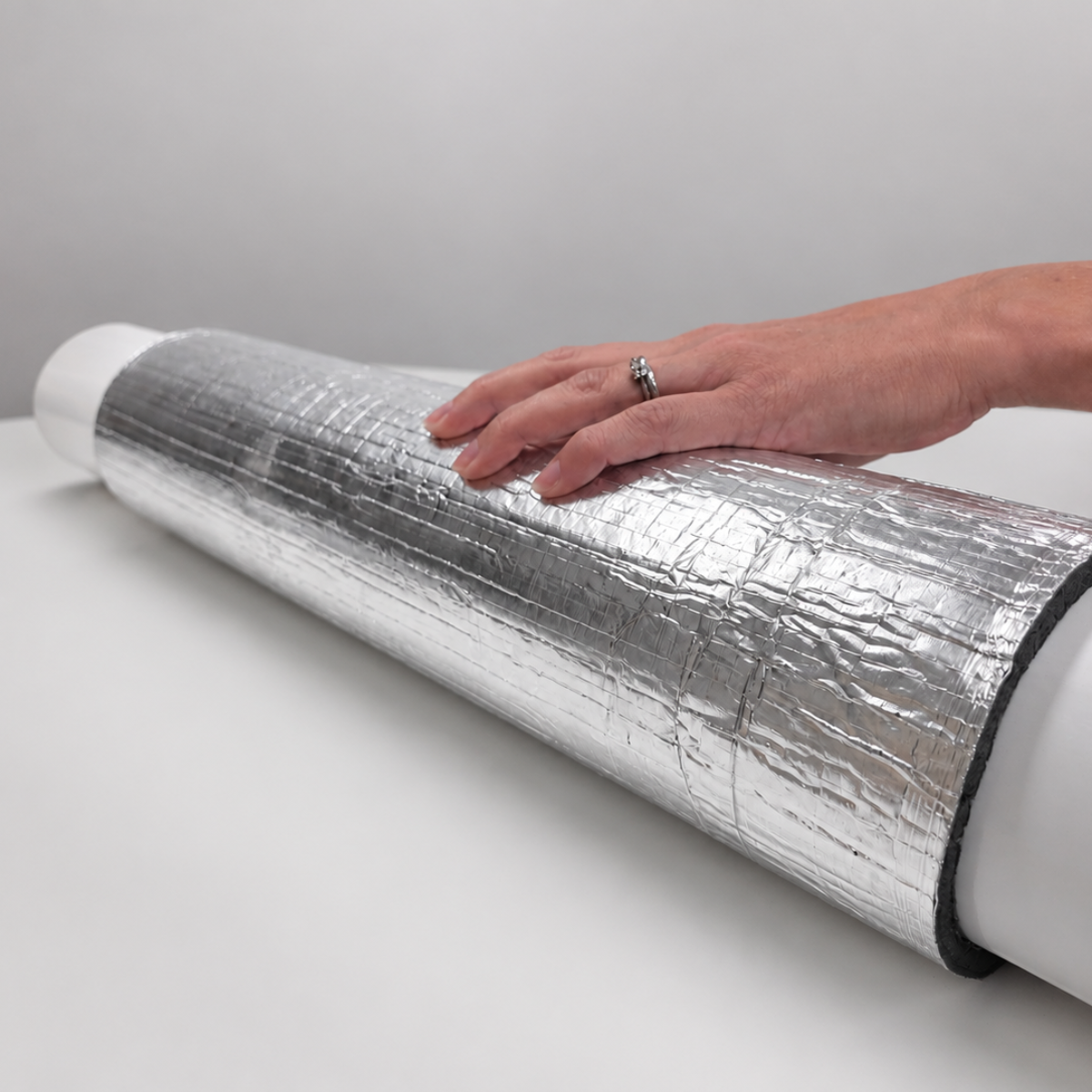

How SilenceCORE Acoustic Lagging Is Constructed

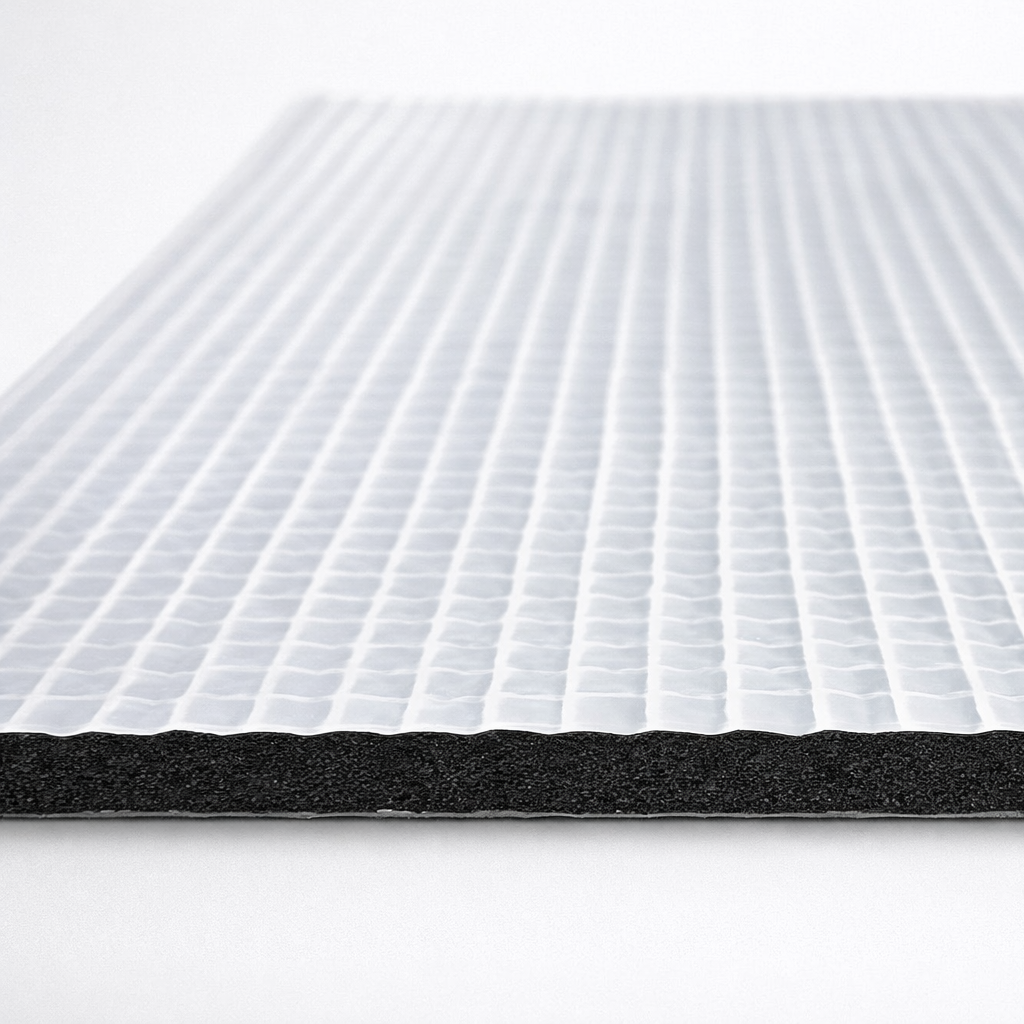

SilenceCORE combines three functional layers:

• Dense mineral-loaded acoustic barrier: adds mass and resists airborne sound transmission.
• Flexible NBR isolation layer: helps isolate vibration and allows the wrap to conform to the pipe.

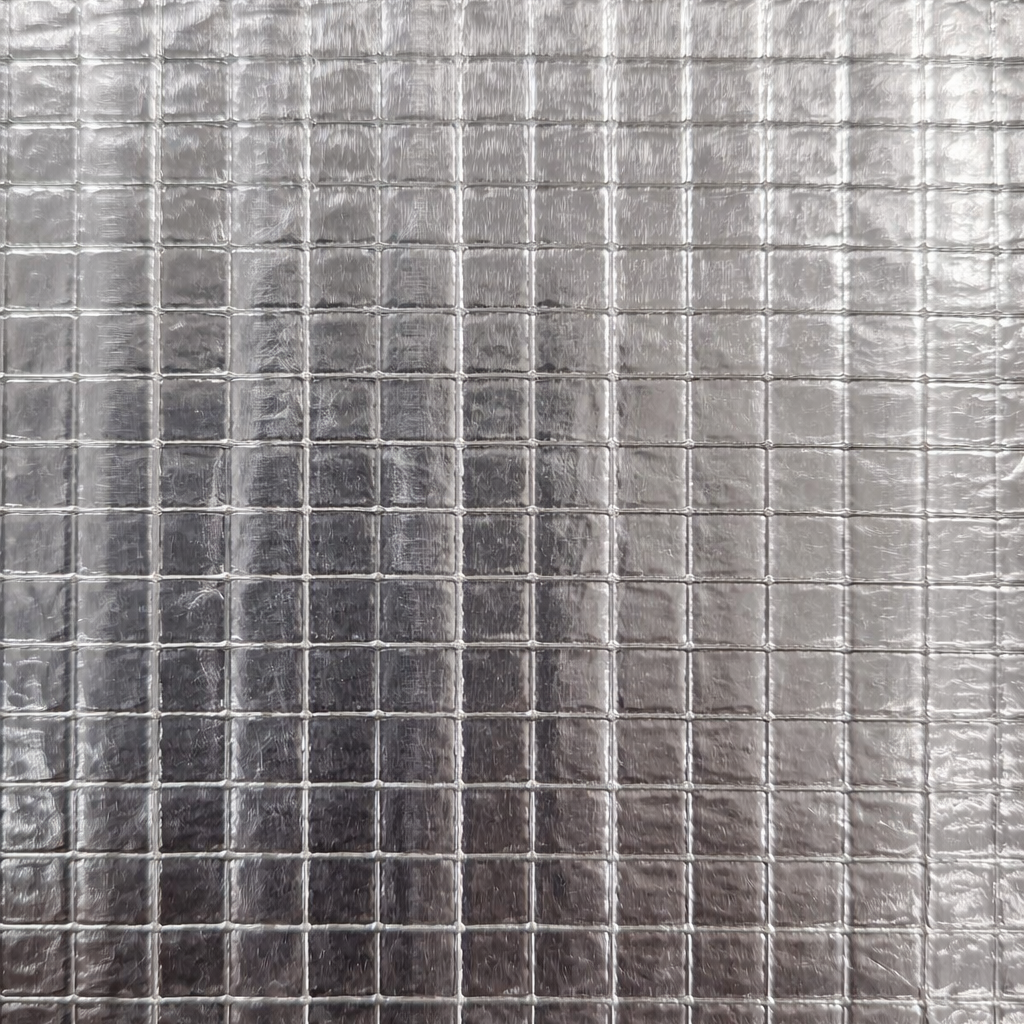

• Reinforced foil facing: protects the acoustic layers and provides a durable finished surface with additional vapour resistance.

The self-adhesive backing allows the material to be applied directly around suitable clean and dry services.

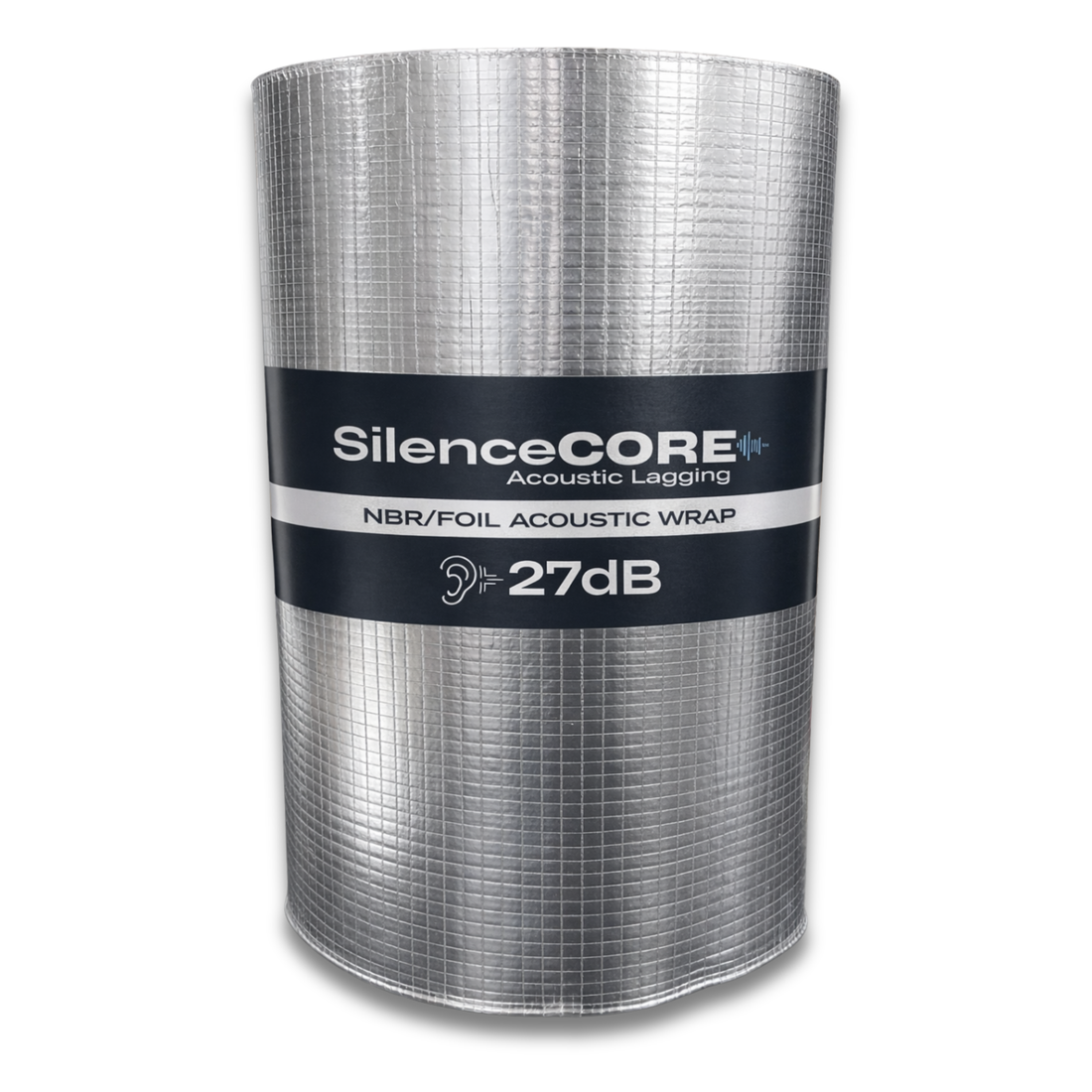

5mm Overall thickness

2.25m² Coverage per roll

6kg Approximate roll weight

Rw 27dB Stand-alone laboratory rating

Acoustic Lagging vs Standard Pipe Insulation

Standard foam pipe insulation may help with temperature control and can soften some light contact noise, but it normally lacks the mass required to provide substantial resistance to airborne pipe noise.

For a noise-sensitive room, choosing a product specifically developed for acoustic control is more reliable than assuming ordinary pipe insulation will provide the same result.

Where Can SilenceCORE Acoustic Lagging Be Used?

SilenceCORE is suitable for reducing noise radiating from a range of building services, including:

• Soil stacks
• Waste pipes
• Internal drainage pipework
• Rainwater pipes
• HVAC ductwork
• Ventilation services
• Plant-room pipework
• Mechanical building services

Typical projects include houses, flats, apartment developments, hotels, offices, schools, hospitals, commercial premises and plant rooms.

How Does SilenceCORE Reduce Pipe Noise?

It Adds Mass to the Pipe Surface

Lightweight surfaces are easier to excite into vibration. Adding a dense acoustic barrier increases the resistance of the treated surface to sound radiation.

It Helps Isolate Vibration

The flexible NBR layer sits between the pipe and the dense barrier. This helps reduce direct vibration transfer while allowing the lagging to follow curves, bends and irregular profiles.

It Creates Continuous Acoustic Coverage

An acoustic wrap is most effective when it forms a continuous treatment around the service.

Careful fitting around joints, branches, couplings and bends is important because exposed pipe sections can remain paths for noise radiation.

It Protects the Acoustic Layers

The reinforced foil facing provides a durable outer surface and helps protect the inner acoustic materials during installation and service.

How to Install Acoustic Lagging Around a Pipe

Correct installation is essential. Gaps, loose joints or untreated fittings can reduce the effectiveness of the finished system.

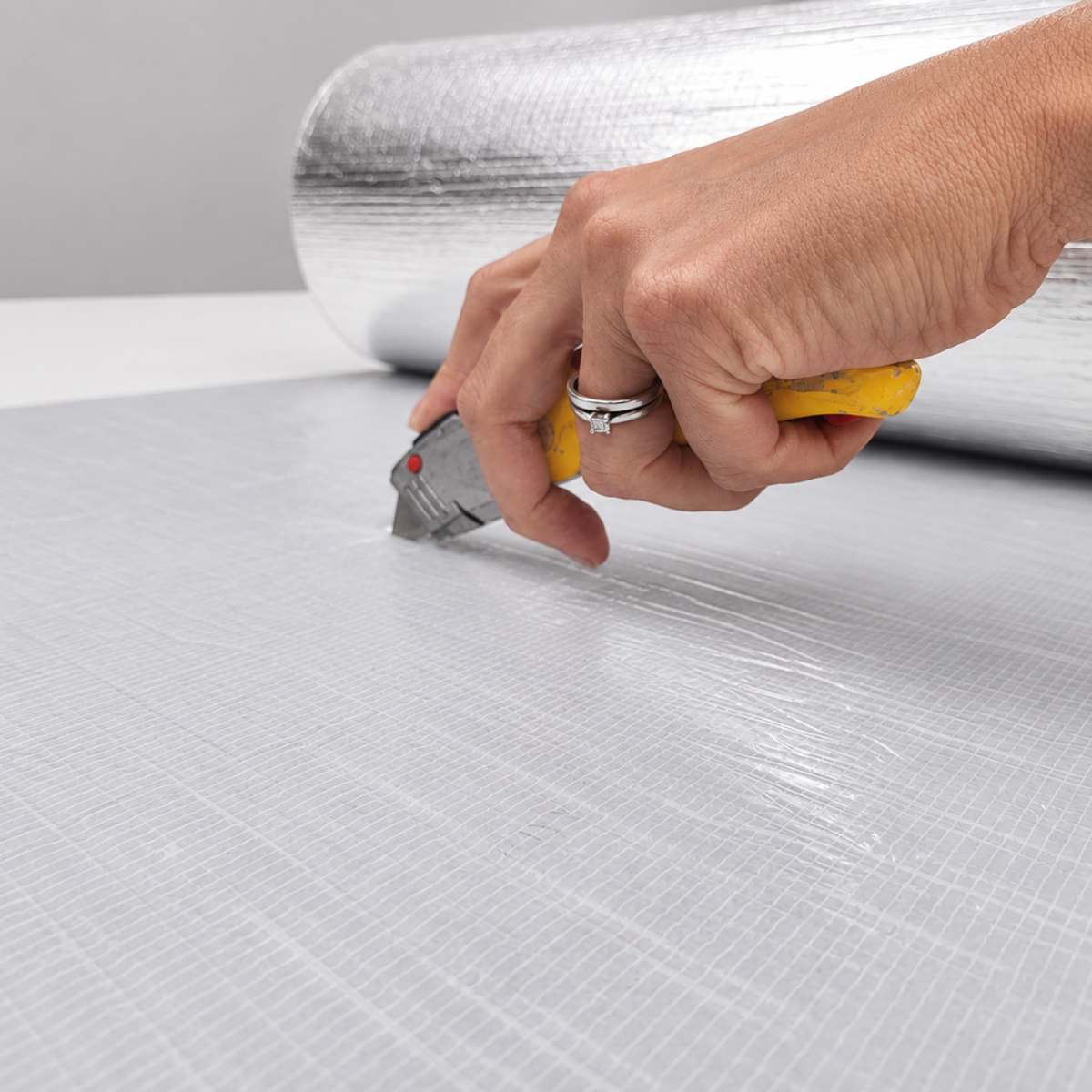

Step 4: Cut the Lagging

Use a sharp knife and straight edge to create clean, accurate cuts. Support the material on a suitable cutting surface.

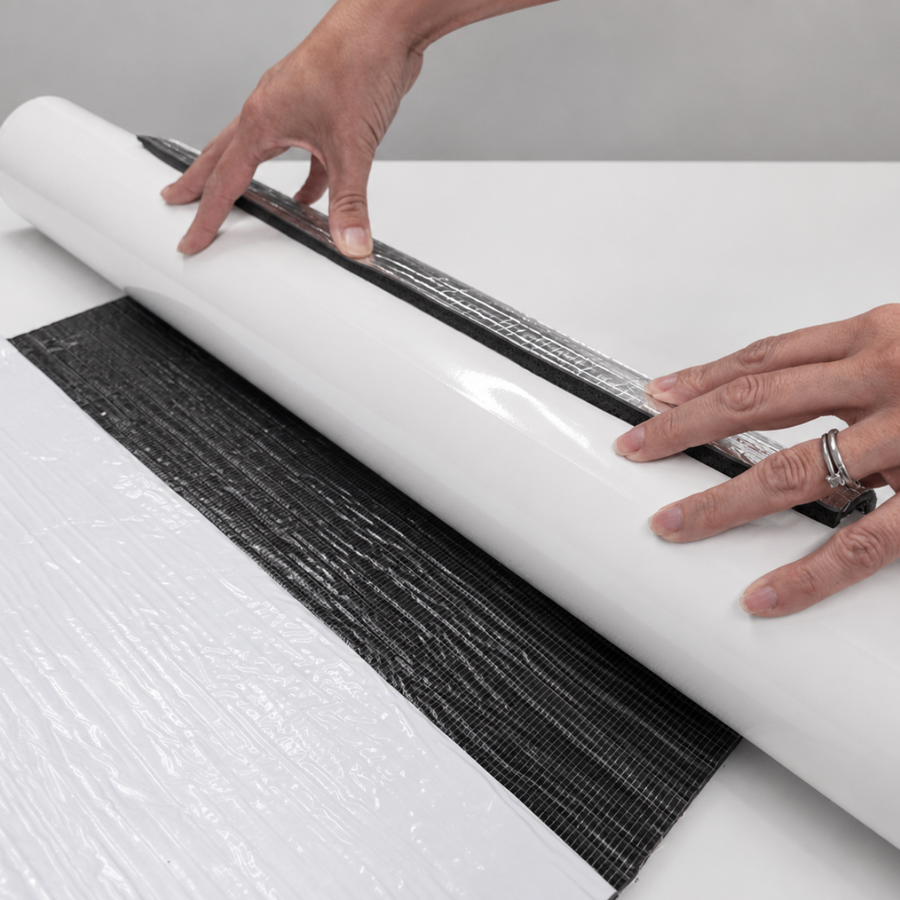

Step 5: Apply the Wrap

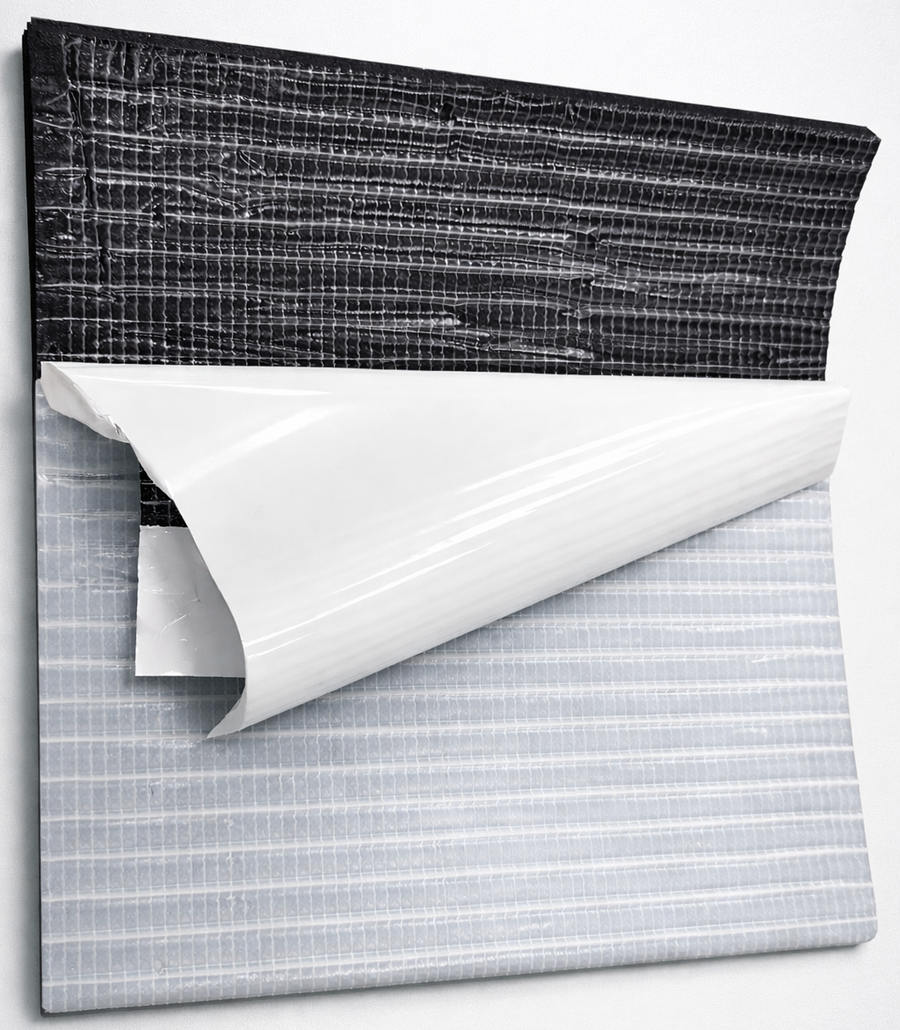

Remove the release liner gradually and wrap the material firmly around the service. Press the self-adhesive backing into close contact with the pipe.

Step 7: Seal Every Joint

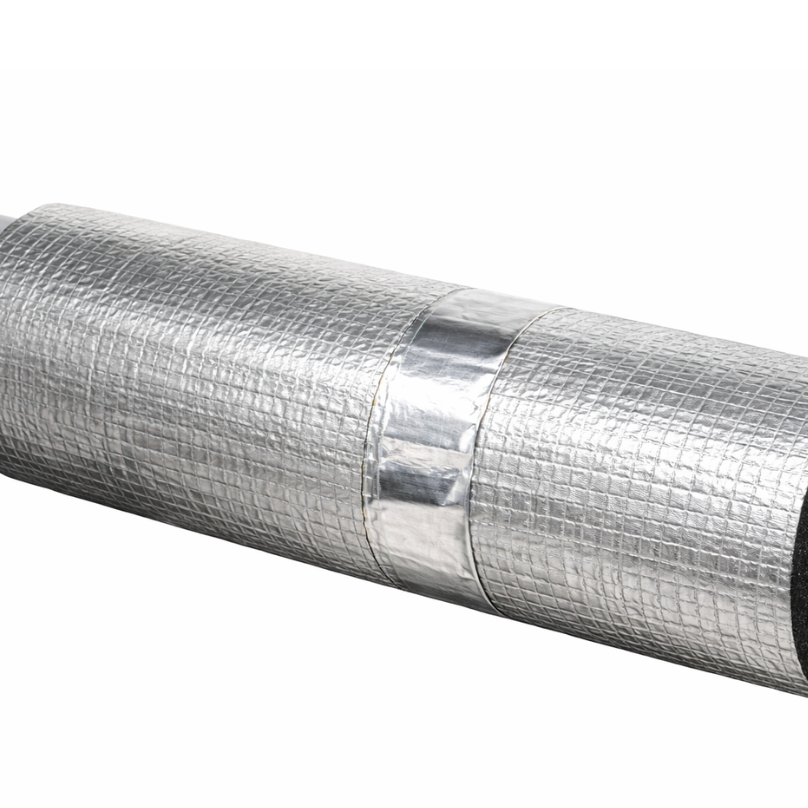

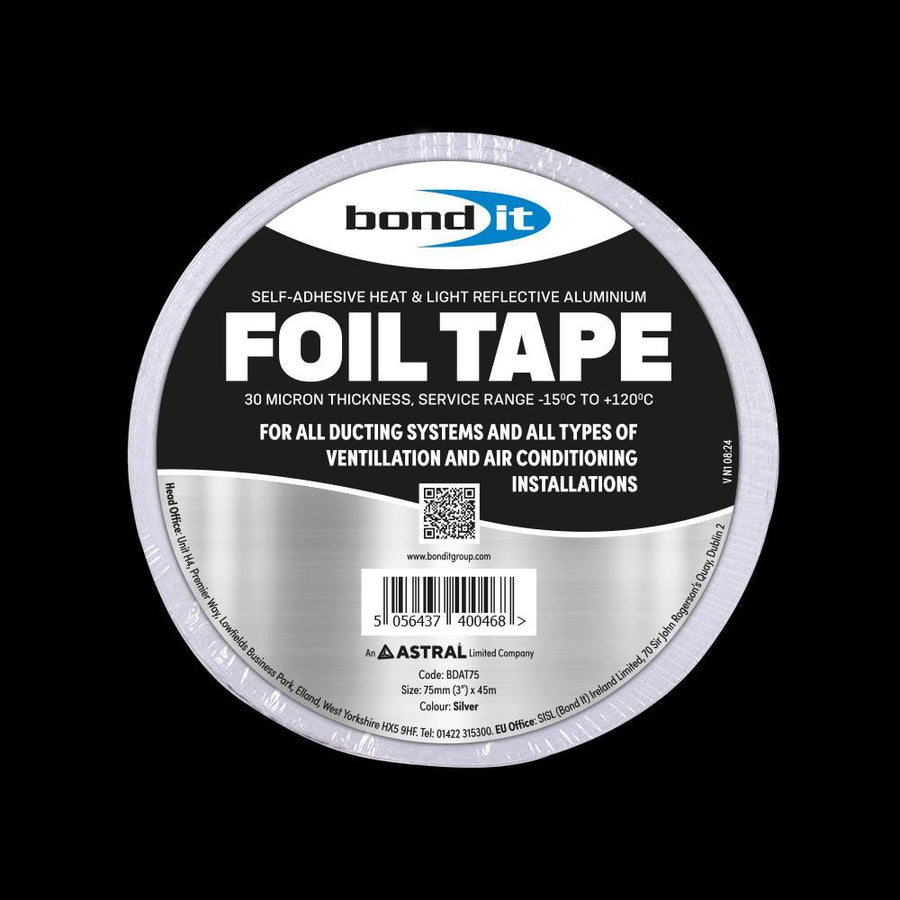

Use suitable aluminium foil tape to seal joints, overlaps and exposed edges. Pay particular attention to small cut pieces around bends and branches.

Do I Need to Treat the Pipe Boxing as Well?

Acoustic lagging treats noise at the pipe, but the surrounding enclosure still influences the final result.

A lightweight, hollow or poorly sealed enclosure may allow residual noise to enter the room. Where a higher level of sound control is required, consider the complete build-up.

• Wrap the pipe continuously.
• Avoid rigid contact between the pipe and boxing as this will bridge the sound.
• Use resilient or isolated pipe clips where suitable.
• Box in the pipe, using timber finished with high mass acoustic boards such as dBoard.
• Introduce rockwool acoustic insulation into the service void - without obstructing required access. This stops sound reverberating around the cavity (like putting a pillow into a kickdrum)

• Seal any air gaps and joints along the perimeter of the enclosure with acoustic sealant.


Common Pipe Soundproofing Mistakes

Using Lightweight Foam as the Only Treatment

Soft thermal foam can provide cushioning but may not have enough mass to significantly resist airborne drainage noise.

Leaving Gaps at Joints

Exposed pipe between sections creates an acoustic weak point. Butt pieces together closely and seal the finished joints.

Ignoring Bends and Branches

Changes in direction are often among the noisiest parts of a drainage system. Cut the lagging carefully so these areas receive continuous coverage.

Wrapping Over Loose Pipework

Lagging will not repair a loose bracket, damaged fitting or pipe knocking against the structure. Correct these structural noise issues first.

Allowing the Pipe to Touch the Boxing

Rigid contact can transfer vibration as a direct noise path into the enclosure. Maintain suitable separation wherever the construction permits.

Failing to Seal Exposed Edges

Unsealed edges may lift or become damaged. Finish the installation with compatible aluminium foil tape.

Covering Access Points

Do not permanently obstruct rodding points, valves, access panels or components requiring inspection and maintenance.

SilenceCORE Technical Information

Is SilenceCORE Acoustic Lagging the Right Solution?

SilenceCORE is suitable when the main problem is noise radiating from an accessible pipe, duct or mechanical service.

It is particularly useful where you need:

• A dense acoustic barrier in a relatively slim build-up (only 5mm thick)
• A flexible material that can wrap around bends and irregular shapes
• A self-adhesive installation
• A reinforced foil-faced finish
• A treatment for drainage, HVAC or mechanical service noise

Where the noise is also travelling through rigid brackets or the surrounding structure, the lagging should form part of a wider acoustic treatment rather than being considered in isolation.
