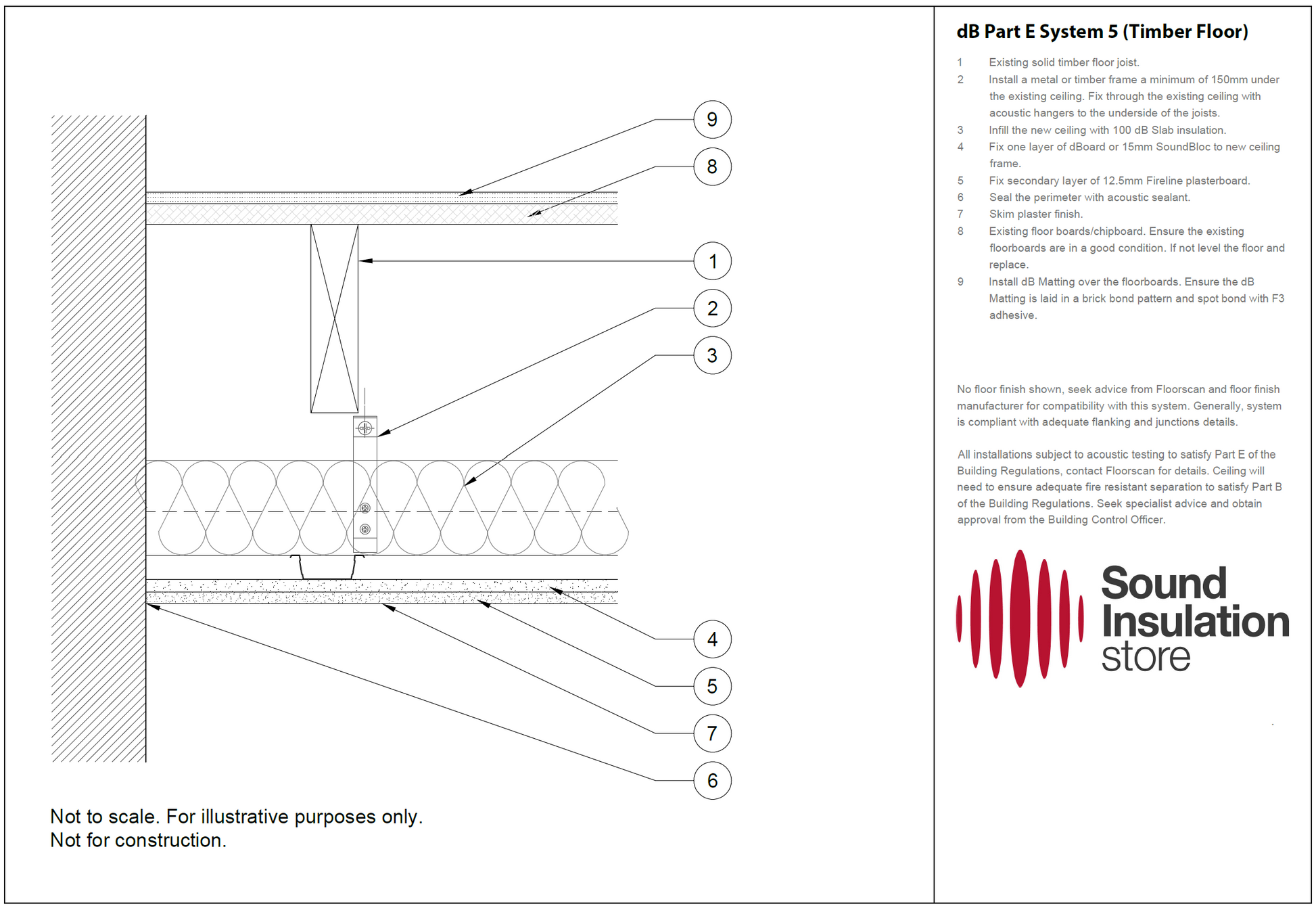

Technical diagram of a floor system with labeled parts and 'Sound Insulation Store' branding.
Technical diagram of a floor system with labeled parts and 'Sound Insulation Store' branding.

dB Part E System 5 (Timber Floor)

The dB Part E Systems are our tried and tested acoustic floor and ceiling build ups that are tried and tested to achieve and exceed Part E of the Building Regulations. Every system also has a wealth of test data proving the performance. To find this look in the Technical Data section below where a number of test reports can be downloaded and compared.

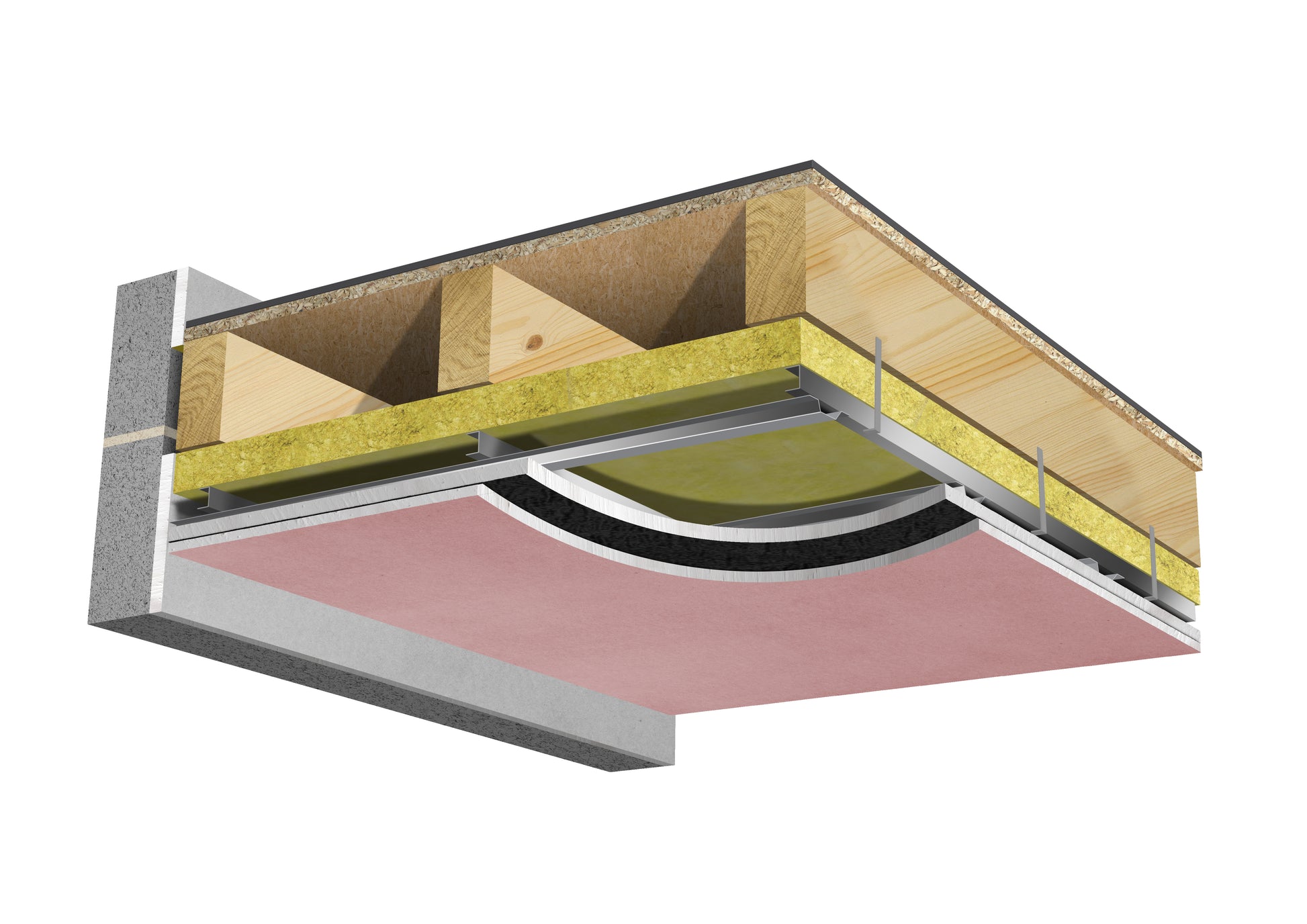

The dB Part E System 5 is for an existing or conversion property with a timber floor structure. This is your typical existing timber floor specification for UK buildings.

All installations subject to acoustic testing to satisfy Part E of the Building Regulations, contact Floorscan for details. Ceiling will need to ensure adequate fire resistant separation to satisfy Part B of the Building Regulations. Seek specialist advice and obtain approval from the Building Control Officer to ensure your ceiling detail satisfies your fire requirement.

Technical Drawing

Click below for the technical drawing and installation advice

Download Technical Drawing

Sound Test Reports

Click below for a copy of the site test report for this system

Test Report







Calculate your requirements

The calculator works out your exact m² coverage. We suggest you allow for wastage in your m² calculation.

0m²

will be covered

£0.00

Inc.VAT

Total price: £0.00

Key Benefits

High Performance impact and airborne noise reduction on timber separating floors.

Isolation, Insulation, Mass

Click the Link Below to reveal Test Data:

Test Report

Installation instructions

Download Technical Drawing

.

Important Information


Sound Insulation Store are specialists in acoustics and sound insulation. All guidance, system information and predicted performance figures are provided for general assistance only.

It is the customer’s responsibility to ensure that the existing structure is suitable and compatible with any proposed sound insulation system. Where required, customers must seek advice from a structural engineer, building control, or another appropriately qualified professional.

Customers must also confirm whether their project requires specific fire resistance, structural, or regulatory compliance measures. Any fire, structural, or regulatory approval must be obtained independently from a competent specialist.

Sound Insulation Store has worked with NCPL to produce Insul prediction graphs and holds site test data on our Part E systems. These figures are intended as guidance only.

Actual on-site performance will vary depending on the condition and construction of the existing building, flanking transmission routes,installation quality, and any unforeseen site variables.

No performance level can be guaranteed unless independently tested on site after installation.
