Troldtekt Structure Screws | White 101 | 4.2 x 45mm | 100 Pack
Secure payments
Product Information

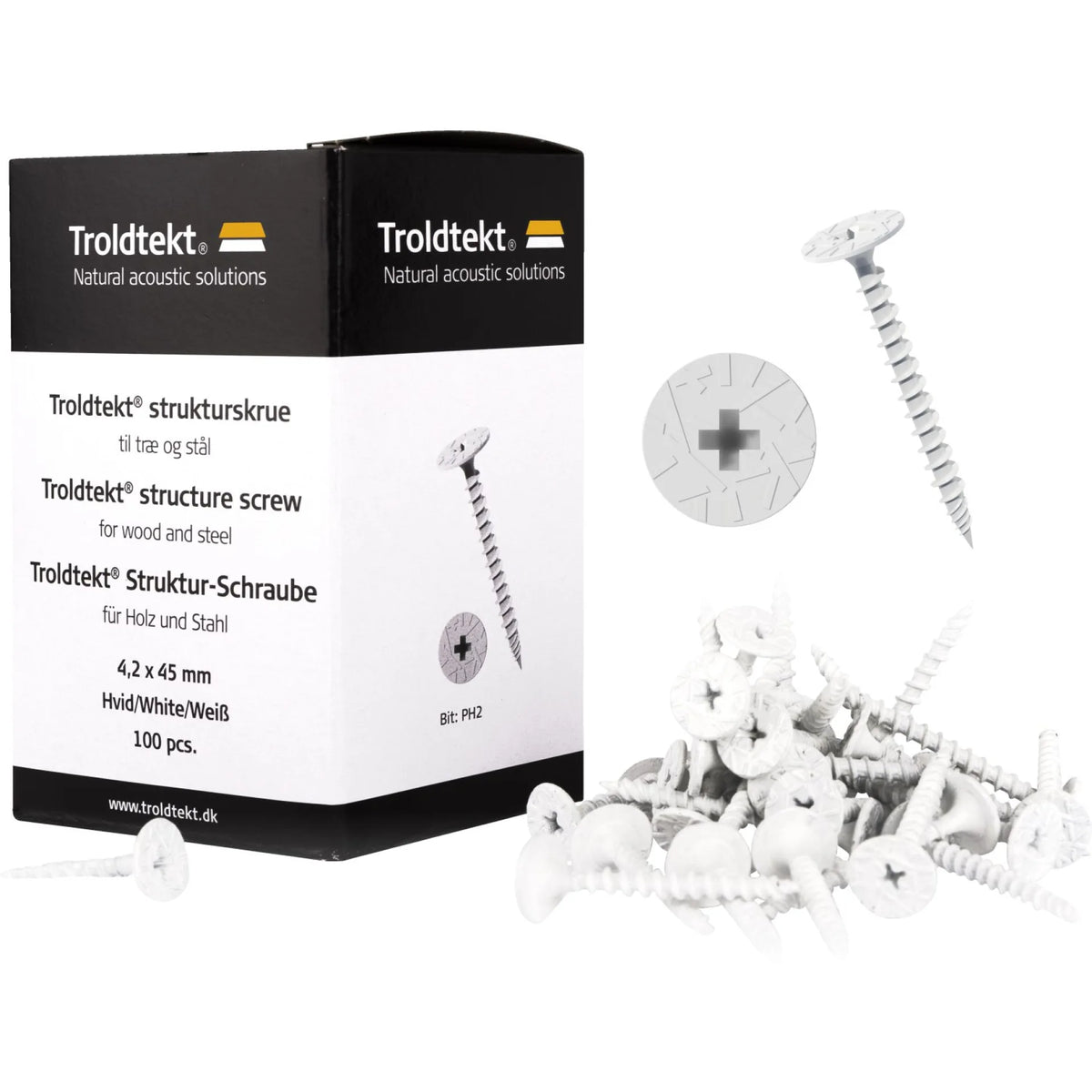

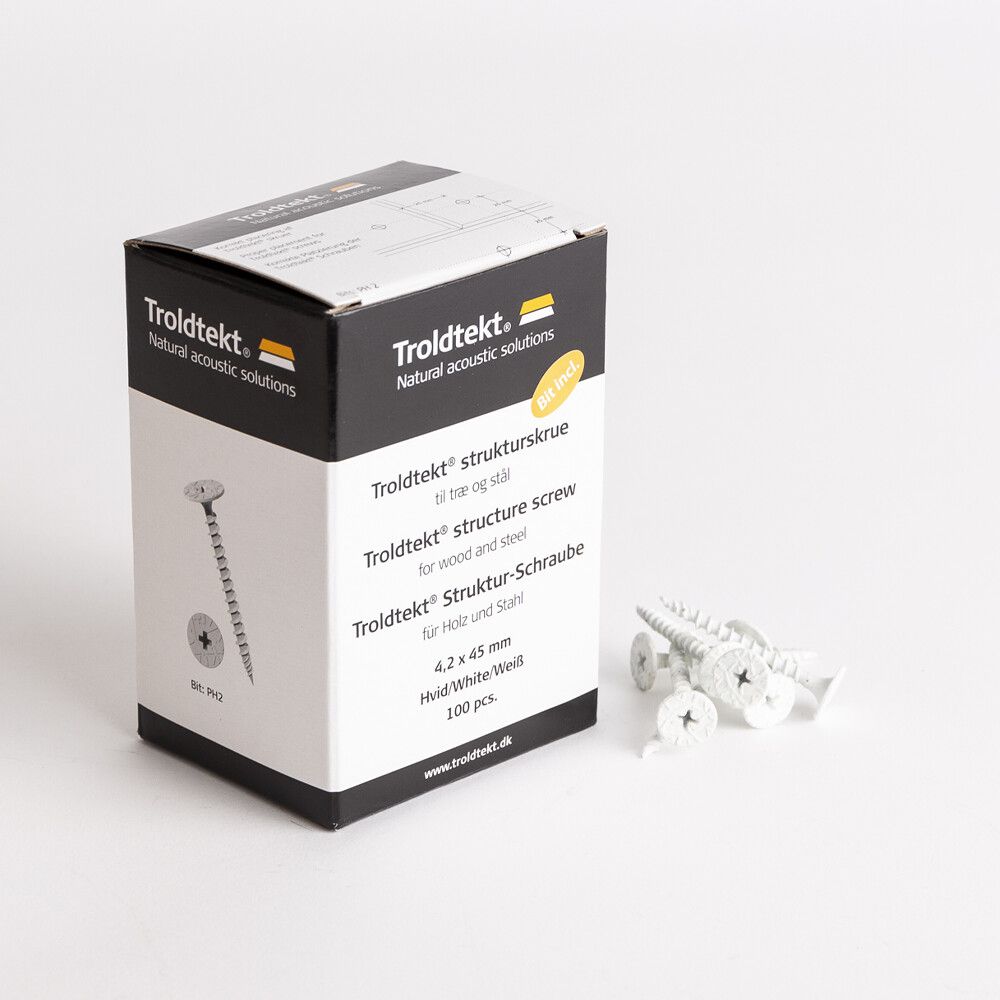

Troldtekt Structure Screws – White 101 – 4.2 x 45mm
Troldtekt Structure Screws are designed specifically for fixing Troldtekt acoustic panels to suitable timber battens and thin steel substrates.
This 4.2 x 45mm version is finished in White 101 to visually match White 101 Troldtekt acoustic panels, helping keep the fixings discreet once installed.
Key Benefits
- Made for Troldtekt panels: developed specifically for installing Troldtekt acoustic ceiling and wall panels.
- Discreet textured head: the patterned screw head is designed to blend into the characteristic Troldtekt surface.
- White 101 colour matched: designed to complement factory-painted White 101 Troldtekt panels.
- Wood and thin steel fixing: suitable for timber and compatible steel substrates up to 0.7mm.
- PH2 drive: uses a standard Phillips 2 drive.
- 100 screws per box: enough for approximately 16 complete 1200 x 600mm panels when using 6 screws per panel.
- Indoor use: electro-galvanised and painted with C4 corrosion resistance.
Suitable Troldtekt Panels
The 4.2 x 45mm White 101 structure screw is recommended for 25mm Troldtekt acoustic panels fixed to suitable timber battens or thin steel supporting constructions.
Recommended for our stocked White 101 panel:
- Troldtekt Acoustic Panel 25mm – White 101 Ultrafine K0
How Many Screws Do I Need?
Troldtekt specifies 6 screws for each 1200 x 600mm panel when using the standard screw-fixed installation arrangement.
1 box = 100 screws
6 screws per panel
Approximately 16 complete panels per box
Approximate panel coverage per box: 11.52m²
Always allow some additional fixings for wastage, dropped screws and site conditions.
Technical Specification
| Property | Specification |
|---|---|
| Product | Troldtekt Structure Screw |
| SKU | TROSCREW45WHITE |
| Manufacturer article | 3322245 |
| Dimensions | 4.2 x 45mm |
| Head diameter | Ø13mm |
| Drive | PH2 |
| Colour | White 101 |
| Quantity | 100 screws per box |
| Suitable substrate | Wood and steel up to 0.7mm |
| Finish | Electro-galvanised with painted coating |
| Corrosion resistance | C4 |
| Application | Indoor use |
| Typical panel thickness | 25mm Troldtekt acoustic panels |
| Screws per 1200 x 600 panel | 6 |
Installation
Position Troldtekt structure screws in accordance with the panel installation guide. For standard 1200 x 600mm panels, the fixing points are positioned approximately 20mm from the panel edges.
Drive the screws carefully so the textured head sits correctly against the panel surface. Do not overdrive the screw, as excessive tightening can indent or damage the wood wool surface.
Recommended fixing setup for 25mm panels:
- 6 screws per 1200 x 600mm panel
- Approximately 20mm from panel edges
- Maximum panel support span: 600mm
- Use with suitable timber battens or thin steel up to 0.7mm
Manufacturer Technical Data
Download the Troldtekt technical datasheet and installation guide below for full screw specifications, fixing requirements and panel installation details.
Why Use Genuine Troldtekt Screws?

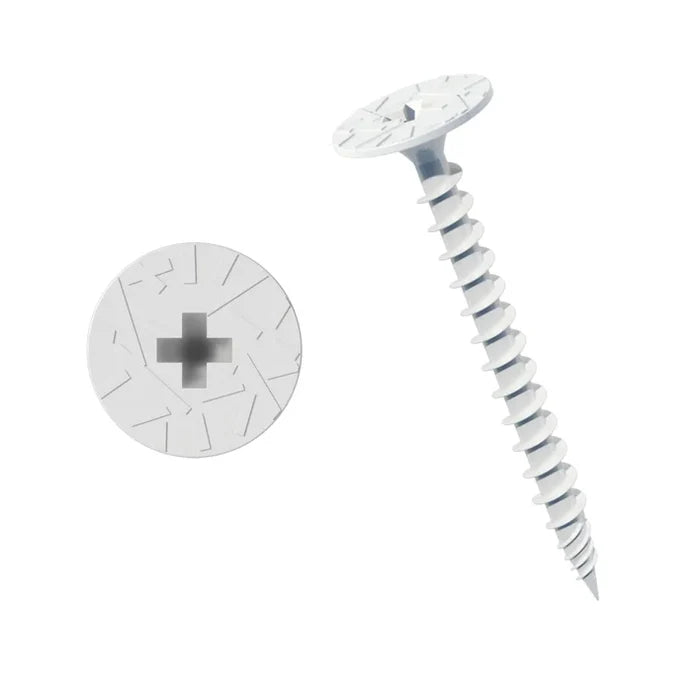

Troldtekt structure screws are designed around both the appearance and installation requirements of Troldtekt acoustic panels. The textured Ø13mm head helps the fixing integrate visually into the wood wool surface, while the White 101 coating matches the corresponding factory-painted panels.
Using the correct screw length and fixing pattern also helps ensure the panels are installed in accordance with Troldtekt's published installation guidance.
