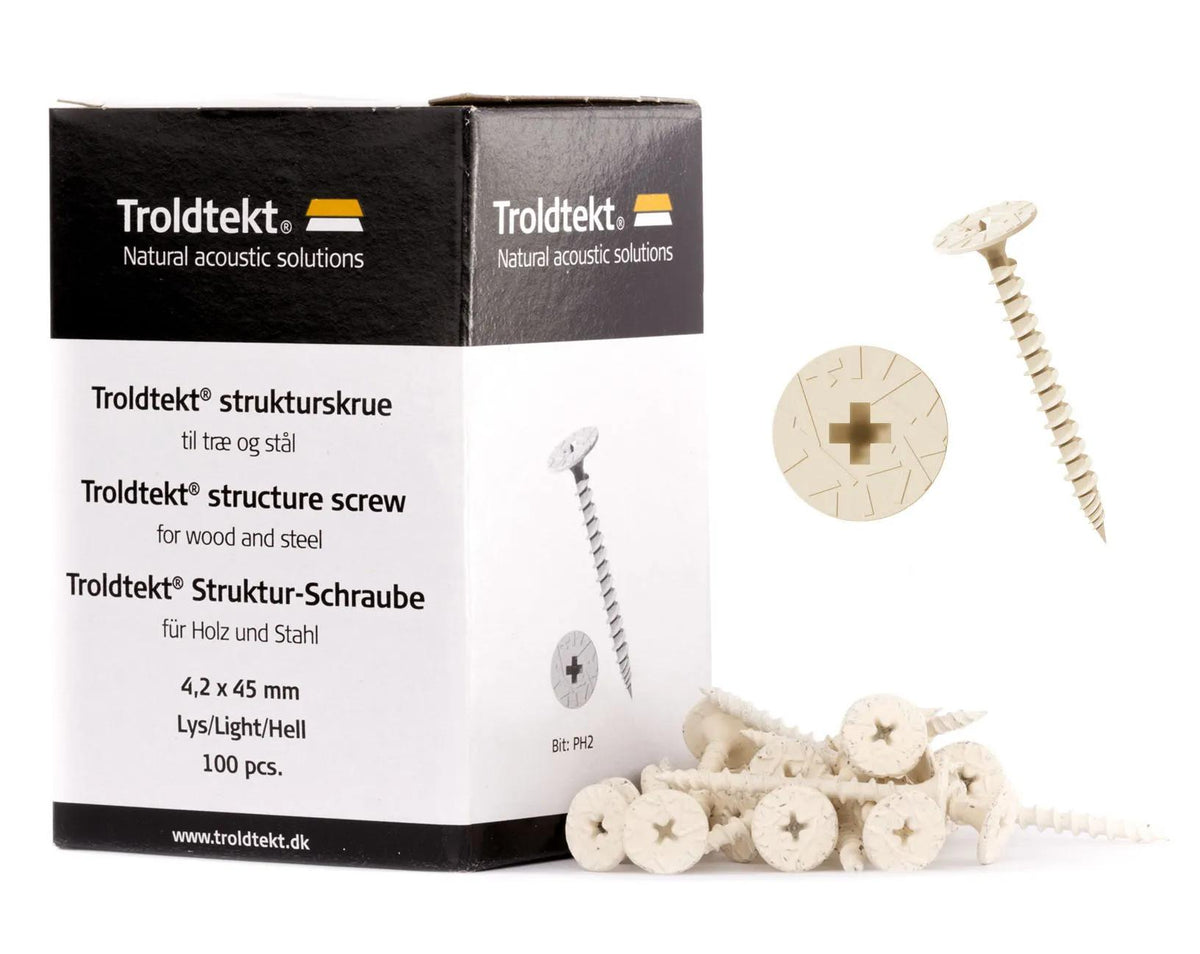

Troldtekt Structure Screws – Light / Natural Wood – 4.2 x 45mm
Troldtekt Structure Screws are designed specifically for fixing Troldtekt acoustic panels to suitable timber battens and thin steel substrates.
This 4.2 x 45mm version features a Light / Natural Wood finish designed to visually blend with Natural Wood Troldtekt panels, helping keep the fixings discreet once installed.
Key Benefits
- Made for Troldtekt panels: developed specifically for installing Troldtekt acoustic ceiling and wall panels.
- Discreet textured head: the structure-patterned screw head helps the fixing blend into the textured wood wool surface.
- Colour matched: Light / Natural Wood finish complements Natural Wood Troldtekt acoustic panels.
- Wood and thin steel fixing: suitable for timber and compatible steel substrates up to 0.7mm.
- PH2 drive: uses a standard Phillips 2 drive.
- 100 screws per box: enough for approximately 16 complete 1200 x 600mm panels when using 6 screws per panel.
- Indoor use: supplied with C4 corrosion resistance for normal indoor applications.
Suitable Troldtekt Panels
The 4.2 x 45mm structure screw is recommended for 25mm Troldtekt acoustic panels fixed to suitable timber or thin steel supporting constructions.
Suitable for our stocked 25mm panels including:
- Troldtekt Acoustic Panel 25mm – Natural Wood Ultrafine K0
- Troldtekt Acoustic Panel 25mm – White 101 Ultrafine K0, where the selected screw colour suits the required finish
How Many Screws Do I Need?
Troldtekt specifies 6 screws for each 1200 x 600mm panel when using the standard screw-fixed installation arrangement.
1 box = 100 screws
6 screws per panel
Approximately 16 complete panels per box
Approximate panel coverage per box: 11.52m²
Always allow some additional fixings for wastage, dropped screws and site conditions.
Technical Specification
| Property | Specification |
|---|---|
| Product | Troldtekt Structure Screw |
| SKU | TROSCREW45NAT |
| Manufacturer article | 3321145 |
| Dimensions | 4.2 x 45mm |
| Head diameter | Ø13mm |
| Drive | PH2 |
| Colour | Light / Natural Wood |
| Quantity | 100 screws per box |
| Suitable substrate | Wood and steel up to 0.7mm |
| Finish | Electro-galvanised with painted coating |
| Corrosion resistance | C4 |
| Application | Indoor use |
| Typical panel thickness | 25mm Troldtekt acoustic panels |
| Screws per 1200 x 600 panel | 6 |
Installation
Position Troldtekt structure screws in accordance with the panel installation guide. For standard 1200 x 600mm panels, the fixing points are located approximately 20mm from the panel edges.
Drive the screws carefully so the head sits correctly against the panel surface. Do not overdrive the screw, as excessive tightening can indent or damage the wood wool surface.
Recommended fixing setup for 25mm panels:
- 6 screws per 1200 x 600mm panel
- Approximately 20mm from panel edges
- Maximum panel support span: 600mm
- Use with suitable timber battens or thin steel up to 0.7mm
Manufacturer Technical Data
Download the Troldtekt technical datasheet and installation guide below for full screw specifications, fixing requirements and panel installation details.
Why Use Genuine Troldtekt Screws?
Troldtekt structure screws are designed around the appearance and installation requirements of the acoustic panels. The textured Ø13mm head helps the fixing integrate visually into the wood wool surface, while the available colour finishes make the screws considerably less noticeable after installation.
Using the correct screw length and fixing pattern also helps ensure the panels are installed in accordance with Troldtekt's published installation guidance.
