10mm Shock Absorbing Gym Floor Underlay – 5m² Roll
Secure payments
Product Information
10mm Shock Absorbing Gym Floor Underlay – 5m² Roll

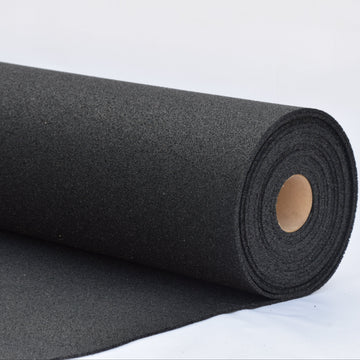

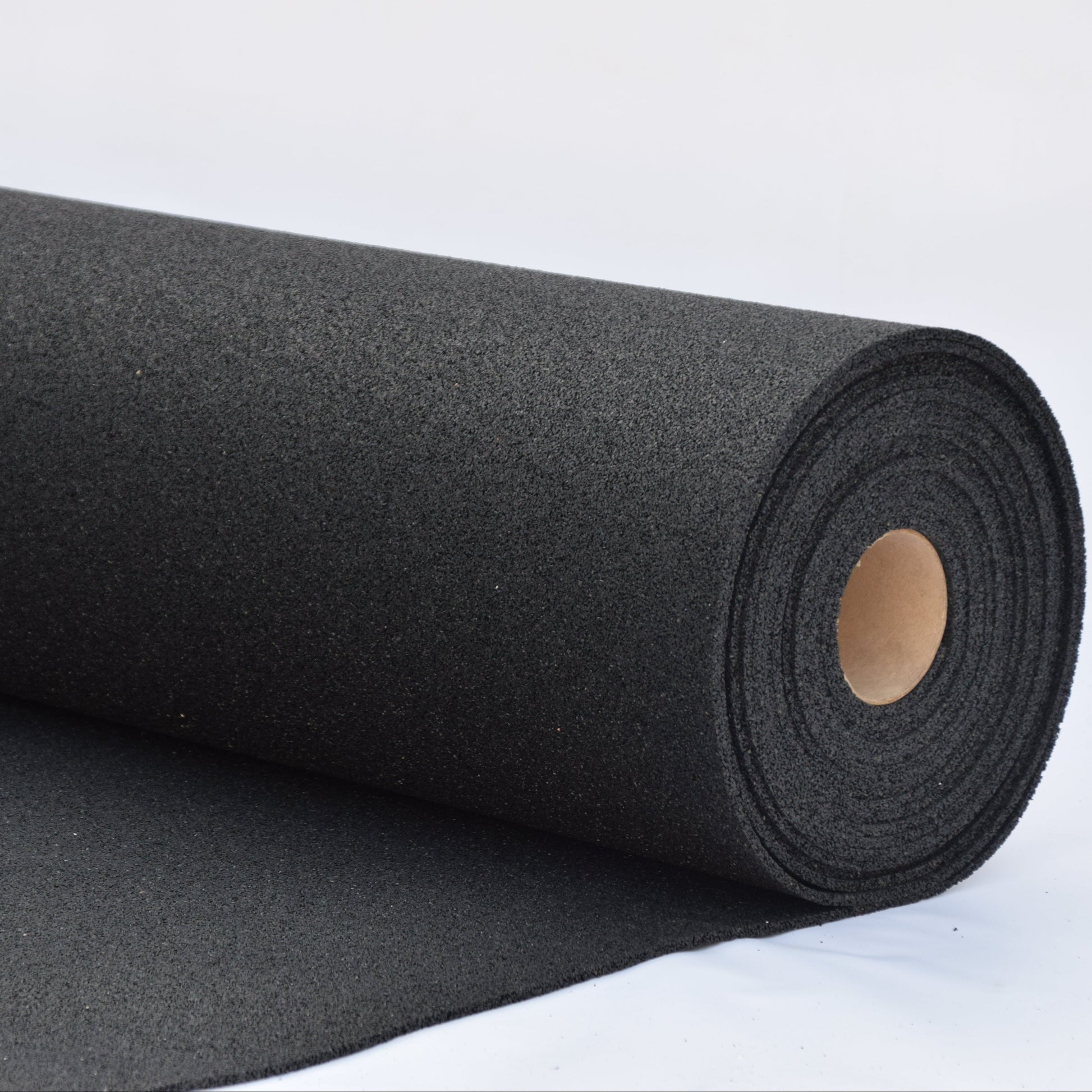

10mm Shock Absorbing Gym Floor Underlay is a fully recycled rubber acoustic underlay designed to improve impact and airborne sound performance beneath gym flooring and other compatible floor finishes. At only 10mm thick, it is a cost-effective, space-saving way to add resilience, mass and acoustic separation to concrete or timber floor constructions.
Use it beneath suitable existing gym flooring as an upgrade, or combine it with our gym flooring range for improved system performance. The resilient rubber construction is designed to absorb footfall and structure-borne vibration while maintaining good compressive strength under demanding floor loads.
Key Benefits
- Cost-effective gym-floor upgrade: helps improve impact and airborne acoustic performance without a deep floor build-up.
- Suitable beneath gym flooring: useful below compatible rubber gym rolls and tiles in home, commercial and leisure spaces.
- Impact noise control: resilient recycled rubber helps reduce footfall and structure-borne vibration.
- High compressive strength: specially selected rubber particles and fibres provide resilience while supporting demanding floor loads.
- Fully recycled: manufactured from recycled rubber with zero ODP and zero GWP stated for the material.
- Multi-purpose: can also be used beneath compatible engineered timber, laminate, stone flooring and carpet, or as an acoustic underscreed layer.
- Concrete or timber floors: suitable for residential and commercial floor constructions when correctly specified.
Applications
The 10mm Shock Absorbing Gym Floor Underlay is suitable for home gyms, commercial gyms, studios, leisure areas and other rooms where footfall, equipment movement or general floor noise needs to be controlled. It can also be used in residential and commercial acoustic floor systems beneath compatible soft or hard floor finishes.
How It Works
The 10mm recycled-rubber layer provides a resilient separation between the floor finish and structural floor. This helps reduce the direct transfer of impact and vibration while the material's mass contributes to the airborne sound performance of the complete floor build-up.
Performance note: the quoted 39dB LnTw impact rating and 53dB DnTw + Ctr airborne rating relate to the relevant assessed floor construction and should not be read as standalone reductions from the underlay alone. Installed performance depends on the complete floor and ceiling build-up, junctions, flanking paths and workmanship.

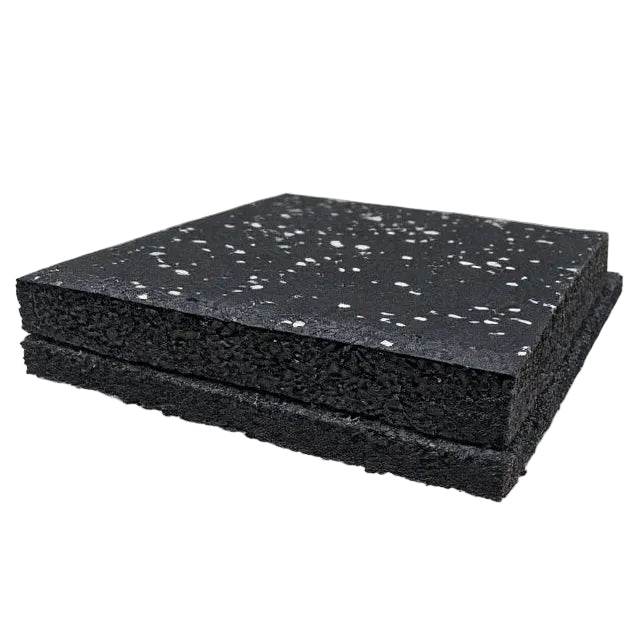

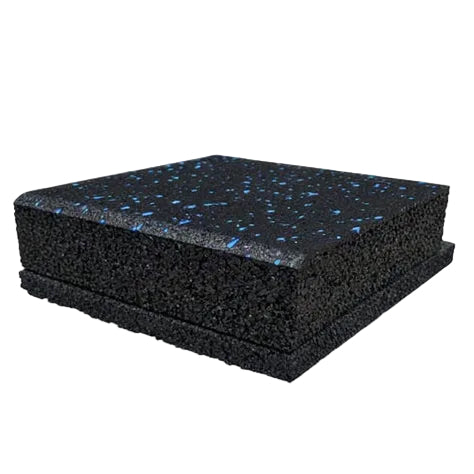

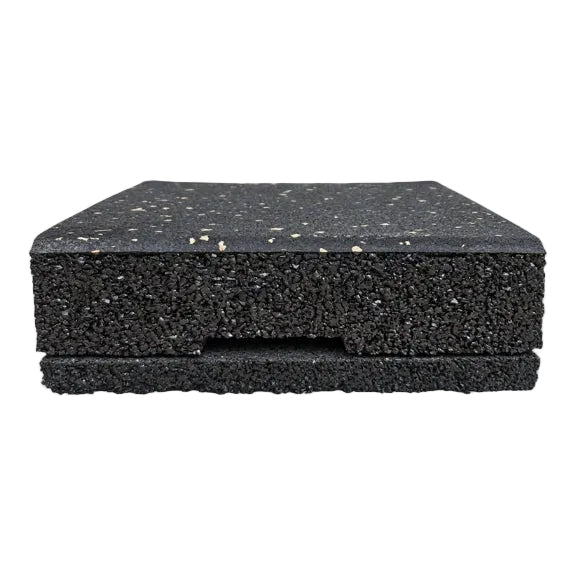

Use Beneath Gym Flooring
For gym applications, lay the 10mm underlay over a suitable clean, flat subfloor before installing the compatible gym floor finish. It is particularly useful where a relatively shallow acoustic layer is needed beneath rubber gym tiles or rolls to improve resilience and reduce vibration from footfall, exercise equipment and general gym activity.
For maximum performance, combine the underlay with a suitable product from our gym flooring range. Always confirm that the selected floor finish is suitable for installation over a 10mm resilient rubber layer.
Technical Specification
| Property | Specification |
|---|---|
| Product | 10mm Shock Absorbing Gym Floor Underlay |
| Material | Fully recycled rubber |
| Roll dimensions | 1m x 5m |
| Thickness | 10mm |
| Coverage | 5m² per roll |
| Impact rating | 39dB LnTw |
| Airborne rating | 53dB DnTw + Ctr |
| Environmental data | Zero ODP and zero GWP stated for the material |
| Suitable subfloors | Concrete and timber floor constructions |
| Typical uses | Gym flooring, compatible hard and soft floor finishes, acoustic underscreed systems |
Installation Guide
1. Prepare the Floor
Ensure the subfloor is clean, dry, level and free from sharp projections or loose debris.
2. Roll Out the Underlay
Lay the 1m-wide rolls flat across the floor and fit adjoining sections closely together without gaps.
3. Cut to Fit
Cut the recycled rubber with a sharp long-bladed trimming knife, scoring the surface and making several passes for a clean edge.
4. Maintain Perimeter Isolation
Prevent rigid contact between the floating floor build-up and surrounding walls where the acoustic system requires perimeter isolation.
5. Install the Floor Finish
Install the selected gym flooring
How Much Do I Need?
Each roll measures 1m x 5m and covers 5m².
Divide the room area by 5 and round up to the next full roll. For example, a 12m² room requires 12 ÷ 5 = 2.4, so 3 rolls are required.
Recommended Gym Flooring
Pair the 10mm underlay with a compatible rubber gym floor finish for a more complete acoustic and impact-control build-up.
Swipe or scroll to view gym flooring options →
Increase Your Gyms Acoustic Protection Without Excess Floor Height
A practical recycled-rubber underlay for gym floors, residential projects, commercial spaces and compatible underscreed systems.
