Troldtekt Acoustic Panel | 25mm Natural Wood Finish | White
Secure payments
Product Information

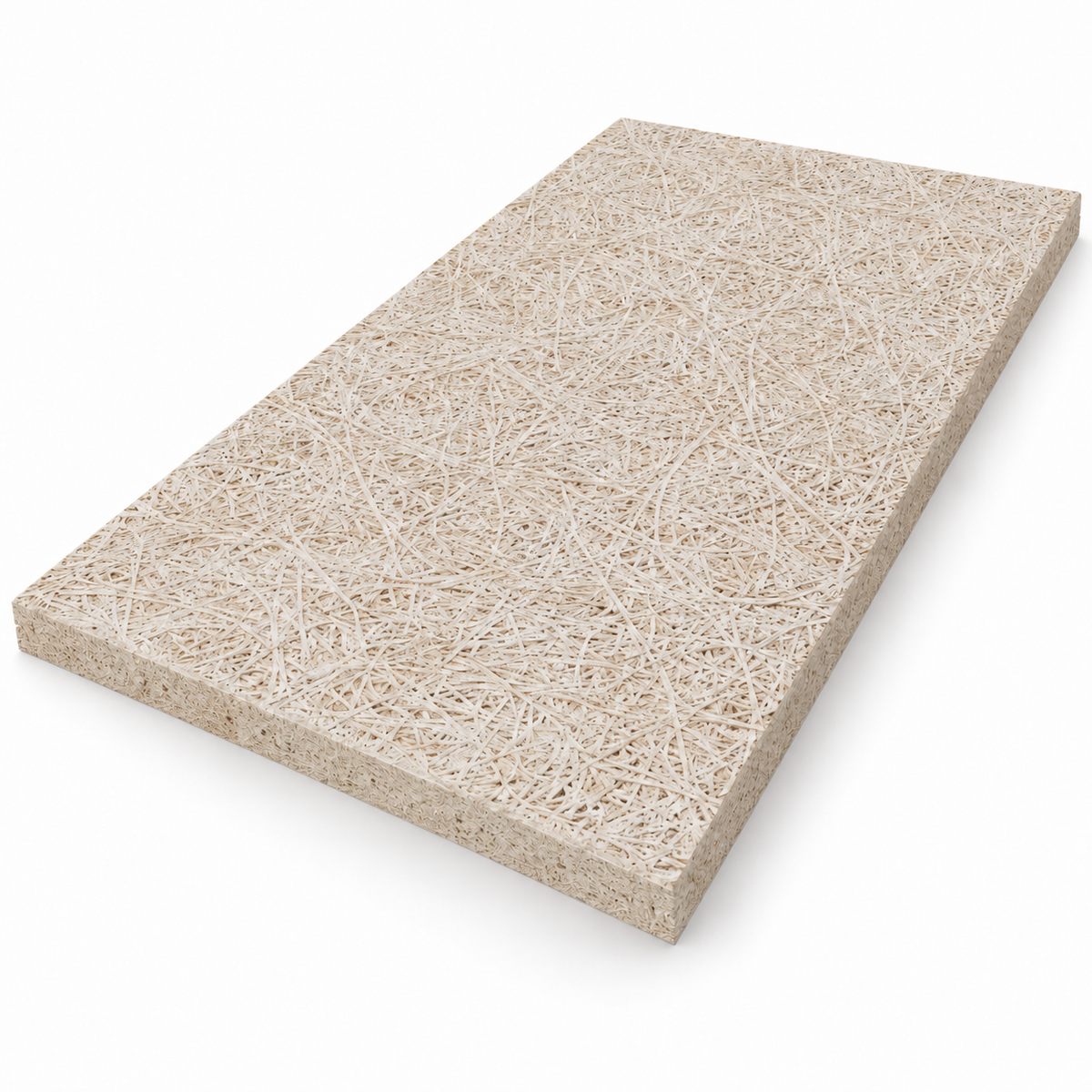

Troldtekt Acoustic Panel 25mm – White 101 Ultrafine K0
Troldtekt Acoustic Wooden Panel is made for reducing reverberation and improving speech clarity on ceilings and walls. Each panel is 1200 x 600 x 25mm, with a square edge for a clean, continuous finish.
It is well suited to classrooms, offices, meeting rooms, communal areas, leisure spaces and other interiors where both aetheics and acoustic control are paramount.
Key Benefits
- Acoustic ceiling and wall panel: helps control reverberation in busy interior spaces.
- Ultrafine 1.0mm structure: provides a more refined visual finish than the coarser Troldtekt structures.
- K0 square edge: creates a simple, architectural panel layout with straight joints.
- White 101 finish: suited to bright classrooms, offices, public buildings and contemporary interiors.
- Flexible installation: Troldtekt Acoustic panels can be installed directly to battens or within compatible profile systems, subject to the selected construction.
- Fire classification: Troldtekt Acoustic is classified B-s1,d0 for reaction to fire.
Applications

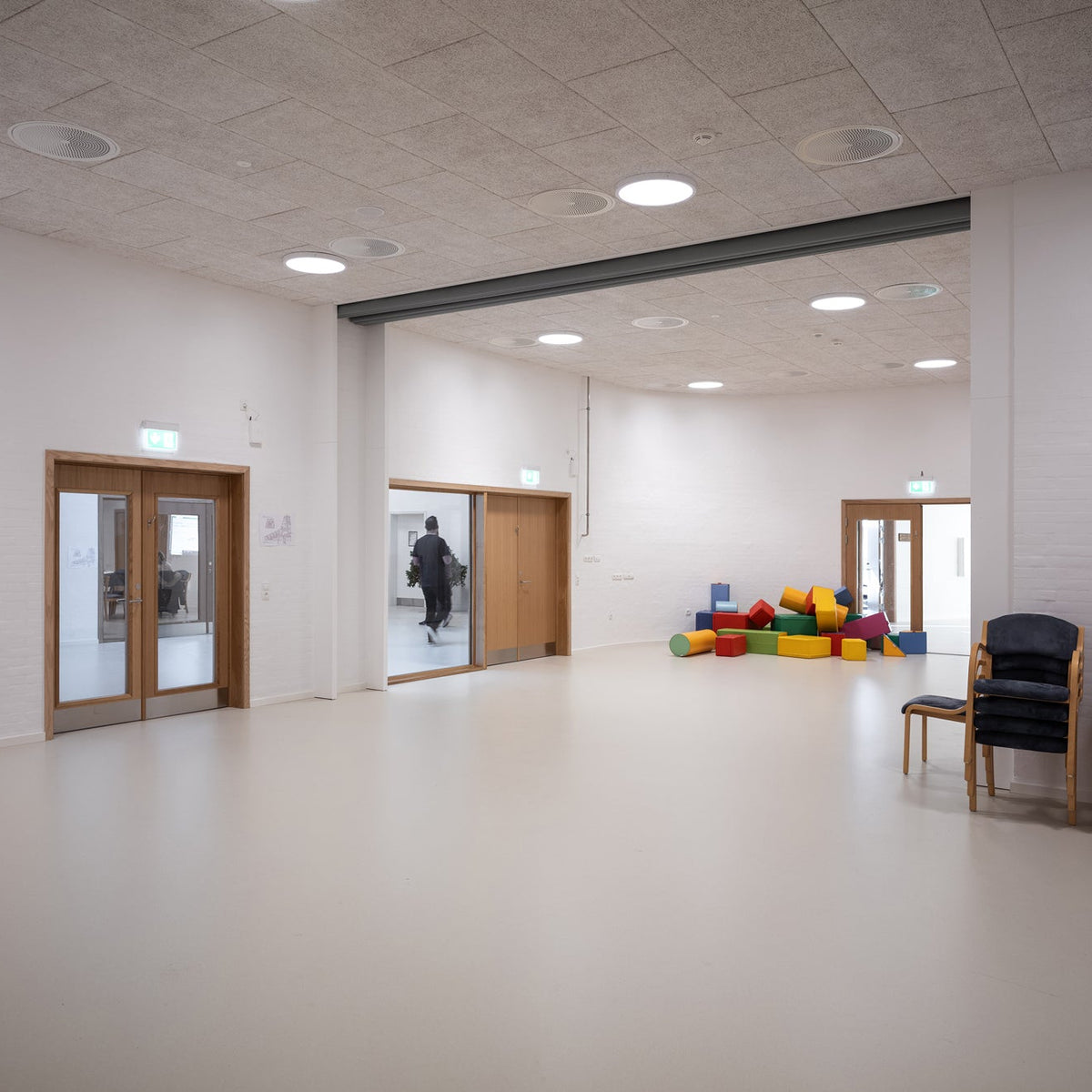

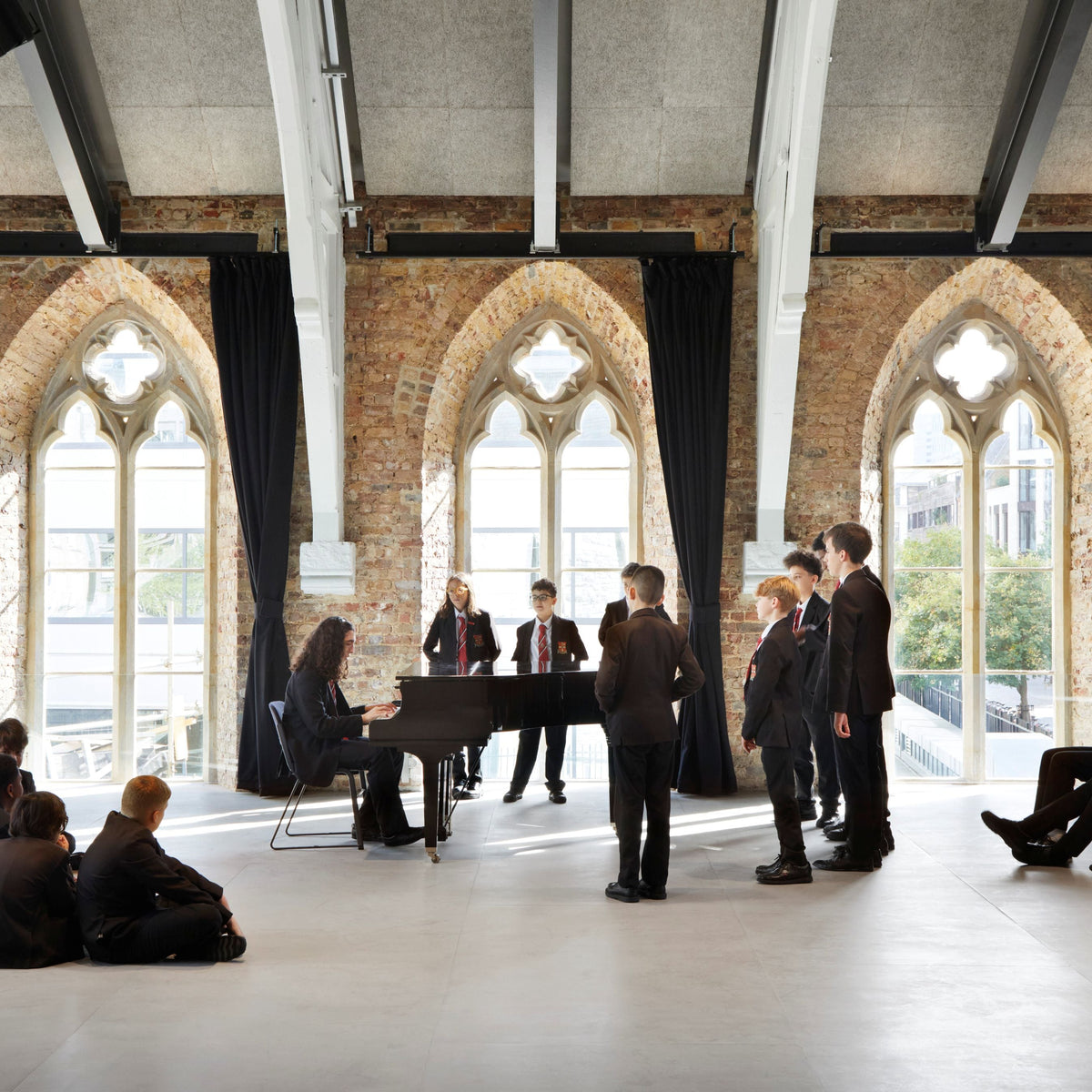

Troldtekt Acoustic panels are designed for use as acoustic ceiling and wall linings. Typical applications include schools, classrooms, nurseries, offices, meeting rooms, restaurants, cultural buildings, leisure spaces and other rooms where excessive reverberation can reduce comfort and speech intelligibility.
How It Works
The open wood wool surface allows sound energy to enter the panel structure, helping reduce reflected sound within the room. Acoustic performance depends on the complete installation, including panel thickness, mounting depth, backing materials and the supporting ceiling or wall construction.
Acoustic performance: Troldtekt Acoustic systems can achieve sound absorption performance up to Class A and an absorption coefficient up to αw 1.00, depending on the installation build-up. These figures should not be interpreted as guaranteed performance from this 25mm panel in isolation.
Construction & Finish
Troldtekt Acoustic panels are manufactured from wood wool bound with cement. This version uses the Ultrafine 1.0mm structure, White 101 finish and K0 square edge.
Technical Specification
| Property | Specification |
|---|---|
| Product | Troldtekt Acoustic Panel |
| SKU | TROLAC25WHITE |
| Panel dimensions | 1200 x 600mm |
| Thickness | 25mm |
| Coverage | 0.72m² per panel |
| Panels per pallet | 40 |
| Coverage per full pallet | 28.8m² |
| Structure | Ultrafine – 1.0mm wood wool |
| Edge | K0 – square edge |
| Colour | White |
| Reaction to fire | B-s1,d0 |
| Approx. weight | 11.4kg/m² / approximately 8.2kg per panel |
| Declared standards | EN 13168 and EN 13964 |
Installation
1. Plan the Panel Layout
Set out the ceiling or wall so panel joints are consistent and unnecessary cuts are minimised.
2. Prepare the Supporting Construction
Install the specified timber battens or compatible Troldtekt profile system in accordance with the chosen installation method.
3. Fix the Panels
Secure the K0 panels using the correct Troldtekt fixing for the supporting construction. For this stocked 25mm White 101 panel, the matching White 101 45mm Troldtekt structure screws are reccommended.
4. Maintain Consistent Joints
Keep the square-edge panel layout straight and consistent across the finished surface, following Troldtekt's installation instructions for the selected build-up.
Why Choose Trodtekt?
Trodtekt a versatile option for projects that need a clean light finish together with effective reverberation control. The 1200 x 600mm panel is straightforward to set out, while the square edge keeps the finished ceiling or wall aesthetically clean and simple.
