Pure-Kustik White Absorption Panels

Pure-Kustik White Acoustic Absorption Panels

Pure-Kustik White Acoustic Absorption Panels are lightweight polyester-fibre panels designed to reduce echo, reverberation and unwanted sound build-up within rooms.

The clean white finish provides a discreet acoustic treatment for offices, schools, restaurants, studios, community buildings, places of worship and other spaces containing reflective wall and ceiling surfaces.

Pure-Kustik panels absorb reflected sound within the room, helping improve speech clarity, acoustic comfort and listening conditions without requiring major construction work.

Key Benefits

• Reduces echo and excessive reverberation
• Helps improve speech clarity and listening comfort
• Class A sound absorption with an αw rating of up to 0.90
• Suitable for direct wall fixing or suspended ceiling installation
• Lightweight and easy to handle on site
• Clean white finish suited to modern interiors
• Made using more than 60% recycled material
• 100% recyclable polyester construction
• No separate fabric facing to peel or fray
• Can be cut and shaped to suit the installation

Applications

Pure-Kustik panels are designed for internal acoustic treatment where hard surfaces are causing sound to reflect repeatedly around the room.

• Offices: clearer calls, improved concentration and fewer noise distractions
• Meeting rooms: improved speech clarity for face-to-face and video communication
• Restaurants and cafés: better conversation clarity and a more comfortable atmosphere
• Schools: reduced reverberation and improved classroom communication
• SEN environments: improved acoustic conditions for people with hearing impairments or additional educational needs
• Community halls and churches: clearer speech, presentations and amplified sound
• Studios: reduced reflections and improved recording and listening conditions
• Leisure facilities: reduced sound build-up in large reflective spaces
• Home offices: improved call quality and reduced room echo
• Public buildings: improved speech intelligibility in reception and communal areas

How It Works

Hard surfaces such as plaster, glass, concrete and timber reflect sound around a room. These repeated reflections create reverberation and echo, which can make speech difficult to understand and increase the perceived noise level.

Pure-Kustik panels introduce a sound-absorbing polyester-fibre surface to the room. Sound energy enters the open structure of the panel and is dissipated, reducing the amount of reflected sound returning to the occupied space.

This helps improve speech intelligibility, acoustic comfort and listening quality.

Construction

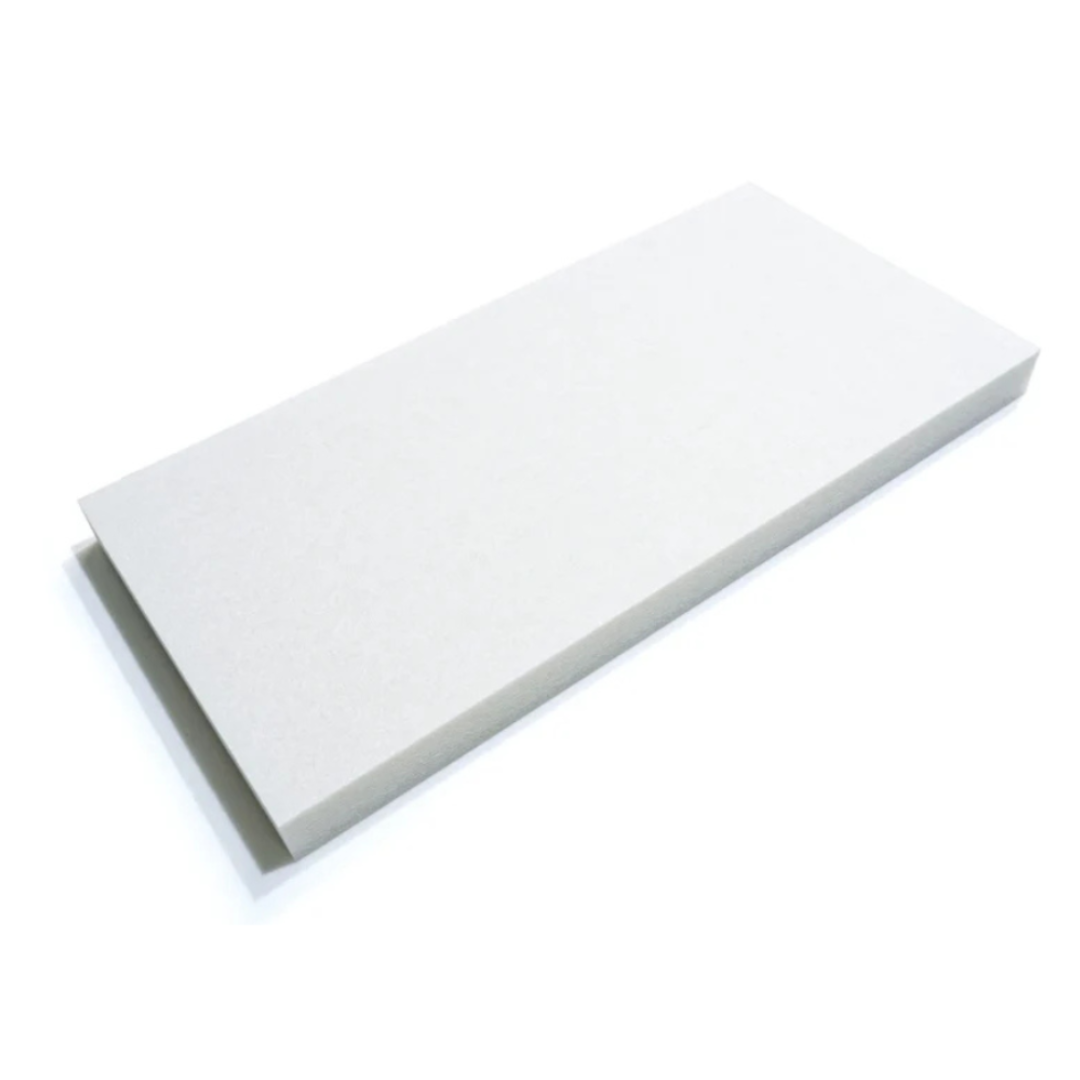

Pure-Kustik panels are manufactured from lightweight polyester fibre with a smooth white surface finish.

• Material: Polyester fibre
• Panel thickness: 40mm
• Colour: White
• Recycled content: More than 60%
• Recyclability: 100% recyclable
• Surface: Unfaced polyester finish
• VOC information: A+ rating stated in the current product information

Because there is no separate decorative fabric layer, the surface cannot peel or fray in the same way as some fabric-wrapped acoustic panels.

Technical Specification

Available Panel Sizes

Acoustic Performance

Pure-Kustik is described as a Class A sound absorber with a weighted sound absorption coefficient of up to αw 0.90.

The exact improvement achieved within a completed room will depend on:

• The total surface area of acoustic panels installed
• The size, shape and volume of the room
• The amount of glass, plaster, concrete and other reflective finishes
• The position and distribution of the panels
• Whether the panels are direct fixed or suspended with an air gap
• The frequency content of the noise
• The existing furniture and soft finishes within the room

Suspended panels can provide effective acoustic treatment because sound can interact with the exposed face, edges and air space behind the panel.

For large rooms, schools, restaurants or other acoustically demanding spaces, a reverberation assessment should be used to calculate the required treatment area.

Installation Guide

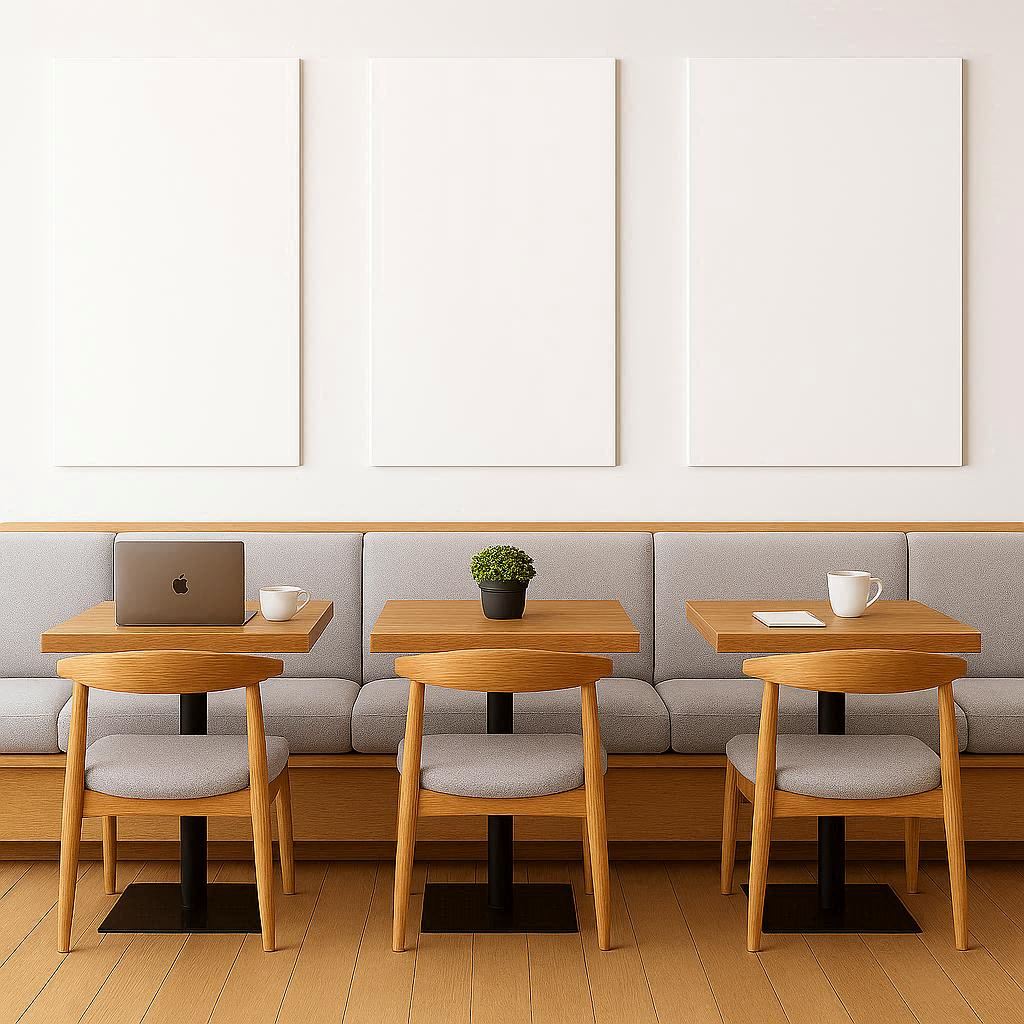

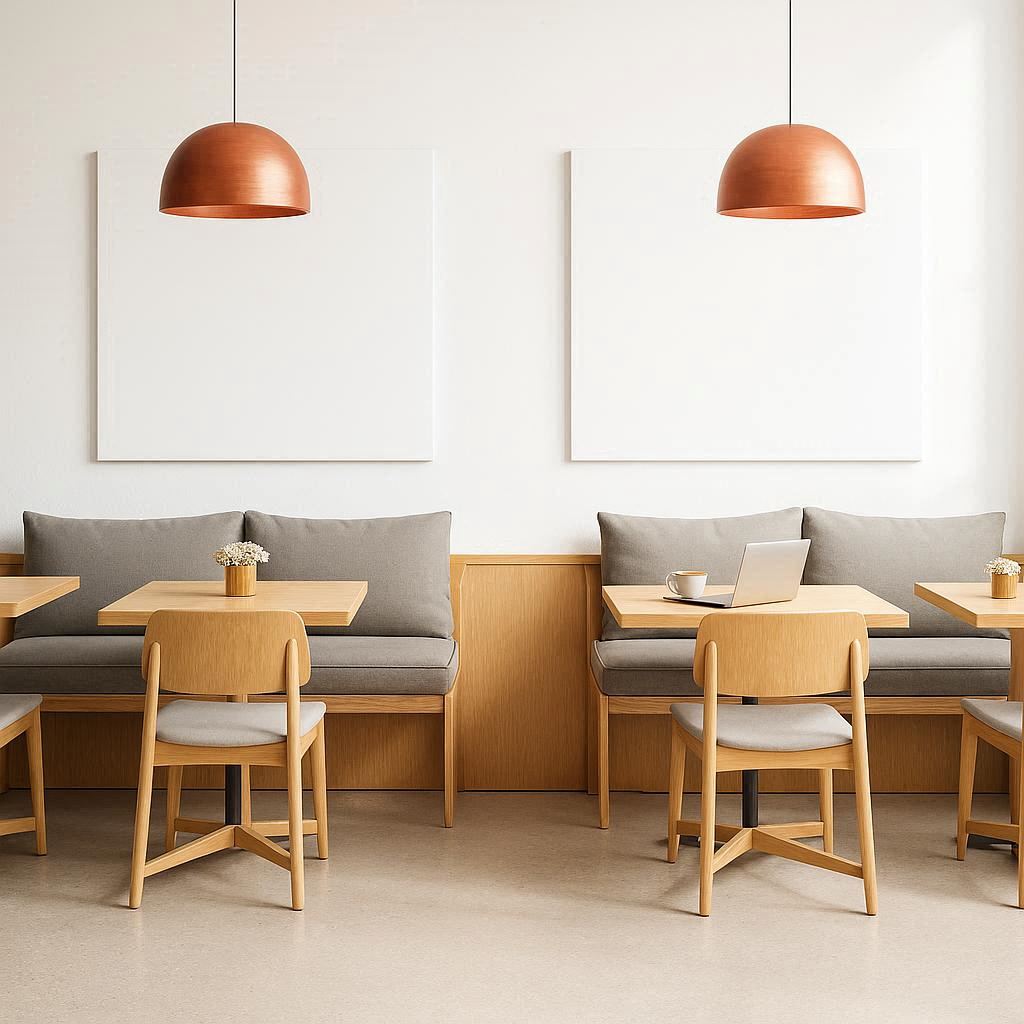

Direct Fix Installation

Pure-Kustik panels can be bonded directly to suitable walls and, where appropriate, ceilings using Tecsound DekoKustik Contact Spray.

This installation method does not require drilling or mechanical fixings when the receiving surface and panel size are suitable.

1. Ensure the surface is flat, clean, dry and free from loose paint, plaster, dust, oil and grease.
2. Remove loose wallpaper and roughen glossy paint where necessary.
3. Mark the final panel positions before applying adhesive.
4. Apply the contact adhesive vertically to the rear of the panel.
5. Apply the contact adhesive horizontally to the receiving wall or ceiling area.
6. Allow approximately 1–2 minutes of tack time at room temperature.
7. Carefully align the panel and bring the two surfaces into contact.
8. Apply light and even pressure using a clean pad or roller.

View Tecsound DekoKustik Contact Spray

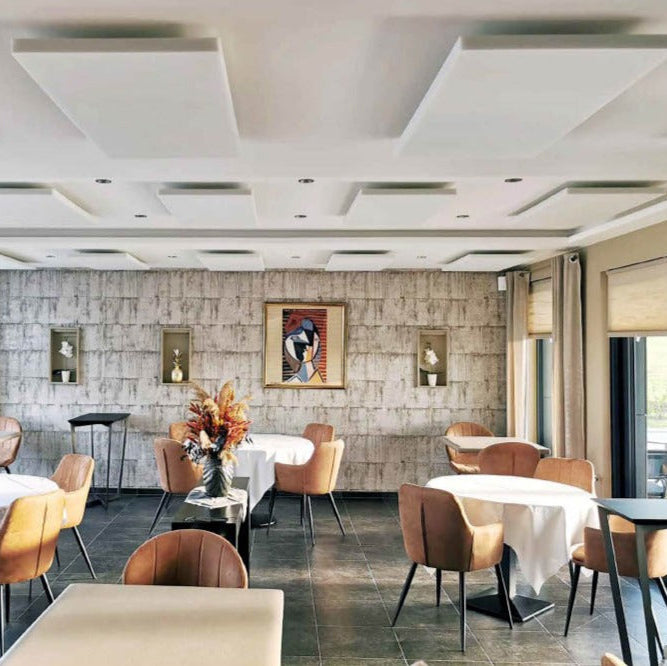

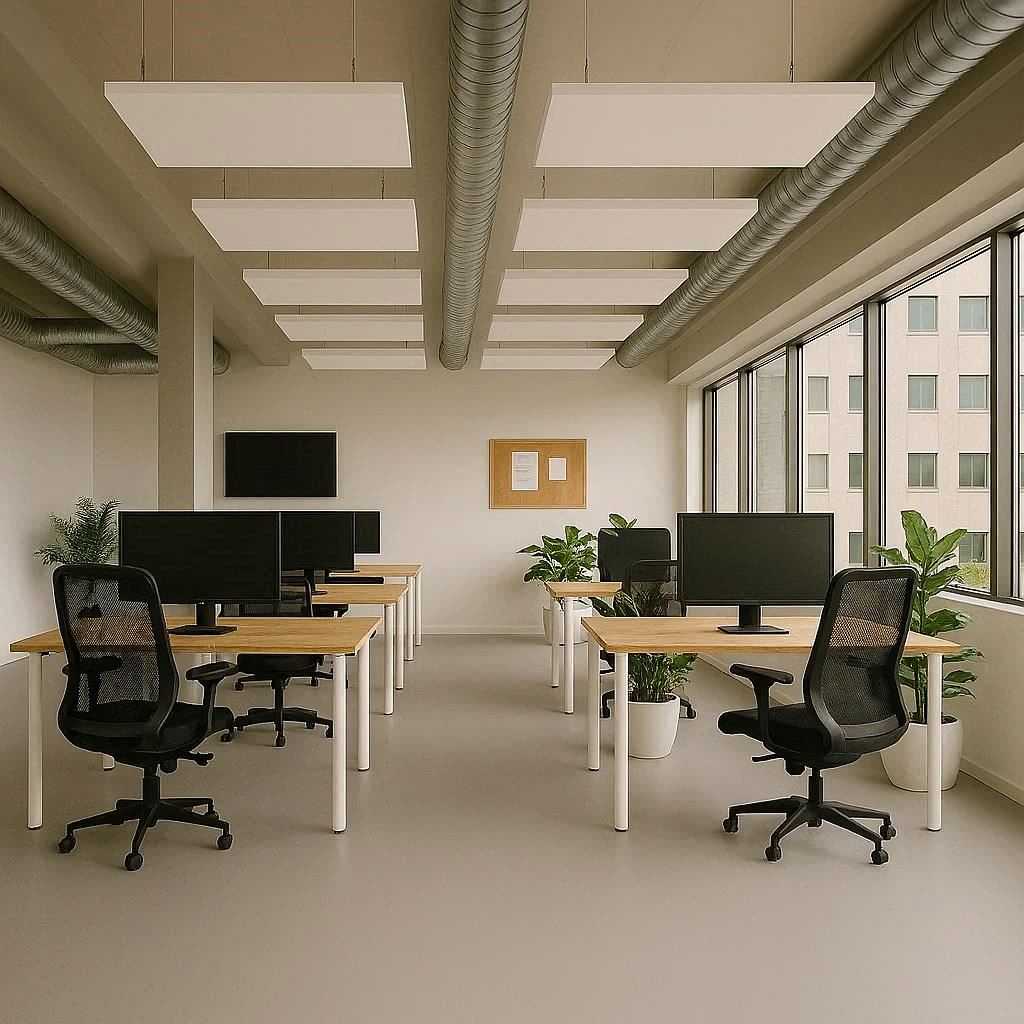

Suspended Installation

Suspended installation is recommended for ceiling applications and can be used to create acoustic rafts, ceiling islands or vertical baffles.

Pure-Kustik panels are suspended from the soffit using steel wires, adjustable hooks and spiral anchors fitted into the rear of the acoustic panel.

The compatible Pure-Kustik Cable Suspension Pack contains the required suspension components for four fixing points.

Each Suspension Pack Includes

• 4 x steel suspension wires, 1mm diameter and 2m long
• 4 x adjustable hooks with safety locks
• 4 x ceiling mounts
• 4 x spiral panel anchors

Recommended Fixing Points for Horizontally Suspended Panels

The number of suspension points depends on the panel size. Panels up to and including 1200mm x 1200mm use four suspension points. Larger panels require additional support to distribute the load and keep the panel level.

Positioning of Fasteners

• Position the spiral anchors symmetrically across the rear of the panel.
• Distribute the fixing points evenly to support the panel and keep it level.
• Spiral anchors must be positioned a minimum of 150mm from the panel edges.
• Use all recommended fixing points for the selected panel size.
• Do not suspend a large panel using only four fixing points.
• Confirm that the soffit and selected ceiling fixings are suitable for the applied load.

Suspended Installation Steps

1. Mark the suspension points in accordance with the panel size and recommended fixing layout.
2. Fix each ceiling base securely to the soffit using suitable structural fixings.
3. Insert the suspension wire into the ceiling mount and secure it.
4. Fit the spiral corkscrew anchors into the rear of the acoustic panel.
5. Keep every spiral anchor a minimum of 150mm from the panel edges.
6. Connect the adjustable hooks to the suspension wires and spiral anchors.
7. Raise the panel gradually and adjust each wire until the panel is level.
8. Check that every fixing, hook and safety lock is fully secure before completing the installation.

Cutting

Pure-Kustik panels can be cut and shaped on site using:

• Ceramic knife
• Filament knife
• Heavy-duty scissors
• Band saw
• Foam saw

Mark the cut accurately and support the panel during cutting to minimise damage to the finished edge.

Handling and Maintenance

• Store panels flat in a clean and dry environment.
• Do not fold, crease or crush the panels.
• Handle white panels with clean hands.
• Remove dust using a vacuum cleaner with a clean, soft brush attachment.
• Avoid aggressive scrubbing or untested cleaning chemicals.
• Protect the panels from damage during surrounding construction work.

Why Choose Pure-Kustik?

Pure-Kustik provides a practical way to improve room acoustics without creating an eye sore.

The white panels are our most popular colour, blending with light-coloured walls and ceilings.

• Class A acoustic absorption
• Direct-fix and suspended installation options
• Slim 40mm construction
• Multiple panel sizes
• Recycled and recyclable polyester construction
• No separate fabric facing
• Suitable for homeowners, installers, schools and commercial contractors

Samples and Delivery

Samples

Samples are available on request. Please call or email the Sound Insulation Store team to arrange a sample.

Delivery

Please allow approximately 5–14 days for delivery, as some panel sizes may be manufactured or prepared to order.

Past Projects, Real Results

Pure-Kustik acoustic panels have been used to provide measurable improvements in challenging spaces, including highly reflective indoor swimming pool environments.

Dartmouth Indoor Pool

• Reverberation reduced from approximately 4.5 seconds to 1.8 seconds
• 126m² of panels installed within two days
• Suitable for a demanding environment where moisture and mould resistance were important considerations

Read the Dartmouth Indoor Pool Case Study
