dB Batten 55

Sound Insulation

Sound Insulation

£ 6.24 Inc. VAT
Impact Rating: 56dB L nTw
Airborne Rating 47dB L nTw +C tr
Thickness 55mm
Sheet Dimensions: 1.8m x 55 x 45mm

What is the db Batten 55?

dB Batten 55 has been designed as a resilient composite batten used to enable the construction of a service void, whilst reducing impact sound transmission and providing long-lasting support for floating timber or chipboard floors.

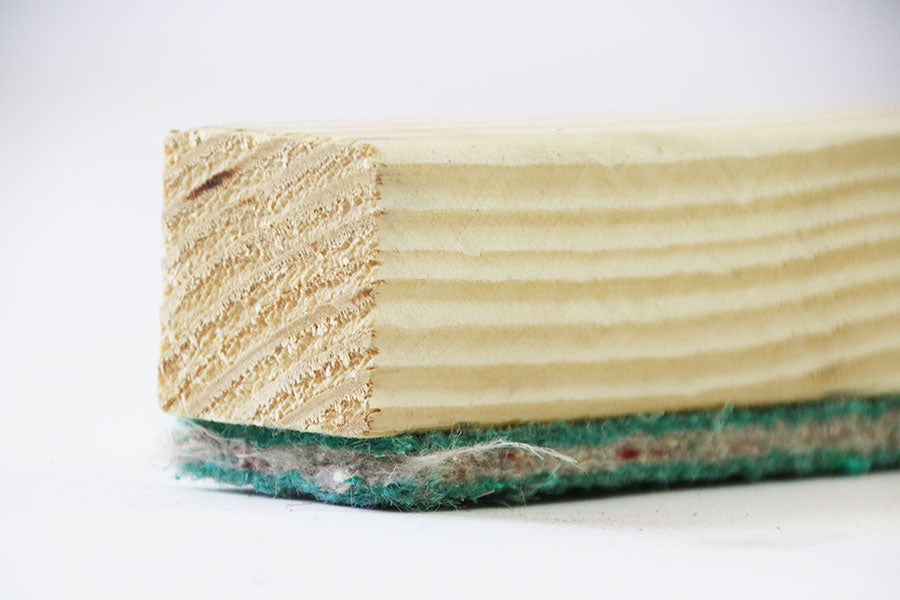

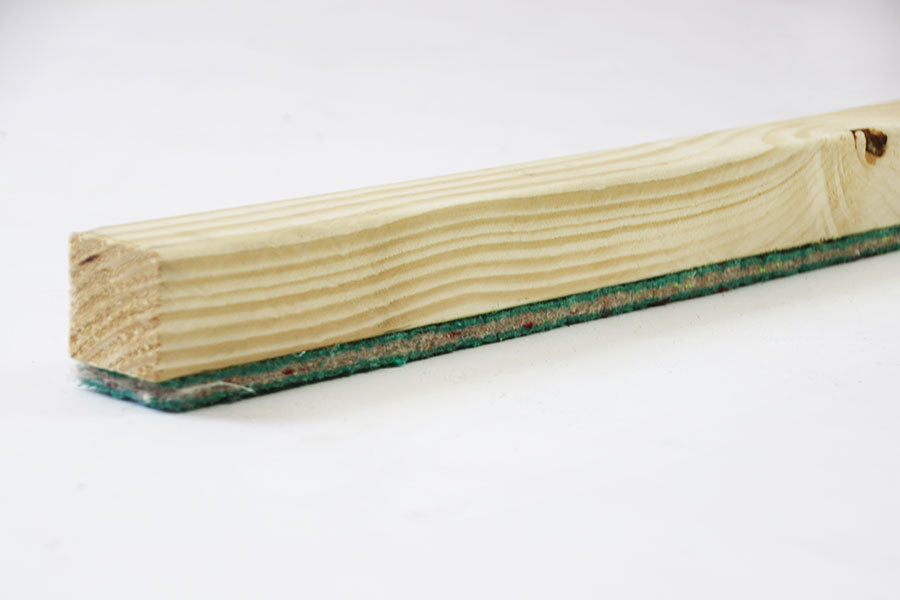

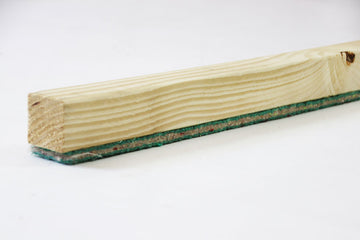

The dB Batten 55 comprises of 45mm x 45mm x 1800mm long treated timber bonded to a 10mm resilient layer.

Please consult the dB Batten 55 datasheet for full installation & performance information.

Dimensions:  1800mm x 45mm x 55mm

The team at SIS say:  This product is great to use in situations requiring impact sound insulation between separating floors.  It creates a service void, ideal for use with underfloor heating.

Maximum centres of 450mm when using 18mm chipboard over the top and maximum centres of 600mm when using 22mm chipboard over the top.

If your room is 3.6m x 3.6mm and using 18mm chipboard over the top you would require 14no. dB 55 battens.

For assistance on the correct quantity to order please contact our technical team on 01928 571 856  or email us on hello@soundinsulationstore.co.uk

Technical Data

Data Sheet
