Standard Resilient Bar 3m Standard Resilient Bar 3m
Protektor
![]() |
Thickness 17mm |
![]() |
Sheet Dimensions: 3m x 30m |

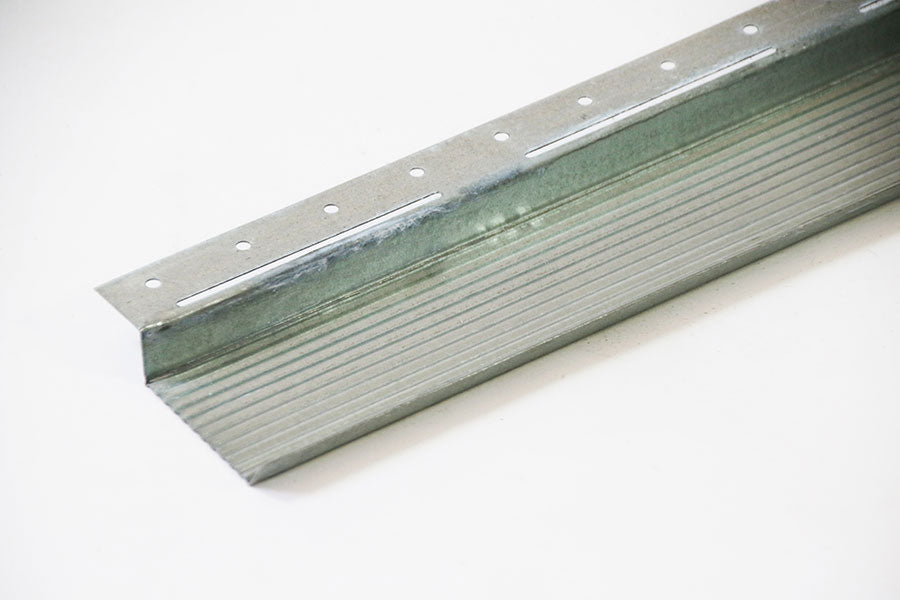

Standard Resilient Bar 3m
Resilient Bar Profiles are designed to improve the sound insulation of plasterboard walls and ceilings whether used in new build or in the improvement of existing constructions. The profile assists in isolating the plasterboard from the supporting surface hence reducing the area of contact and dissipating the level of sound transferring through the metal section.
The Resilient Bar is a 17mm deep decoupling channel for acoustic ceilings and walls to limit sound transfer.
Fix resilient bars 90 degrees to stud work framing either to ceilings or walls.
Fix with the fixing flange at the bottom.
For single boarded systems install at 400mm centres, for double boarded systems install resilient bars at 600mm centres. When installing to ceilings install resilient bars at 400mm centres. Where abutting door openings cut and install resilient bar noggins between horizontal bars to allow plasterboard to be fixed at the required centres
Technical Data
![]() |
Thickness 17mm |
![]() |
Sheet Dimensions: 3m x 30m |
Standard Resilient Bar 3m
Resilient Bar Profiles are designed to improve the sound insulation of plasterboard walls and ceilings whether used in new build or in the improvement of existing constructions. The profile assists in isolating the plasterboard from the supporting surface hence reducing the area of contact and dissipating the level of sound transferring through the metal section.
The Resilient Bar is a 17mm deep decoupling channel for acoustic ceilings and walls to limit sound transfer.
Fix resilient bars 90 degrees to stud work framing either to ceilings or walls.
Fix with the fixing flange at the bottom.
For single boarded systems install at 400mm centres, for double boarded systems install resilient bars at 600mm centres. When installing to ceilings install resilient bars at 400mm centres. Where abutting door openings cut and install resilient bar noggins between horizontal bars to allow plasterboard to be fixed at the required centres
